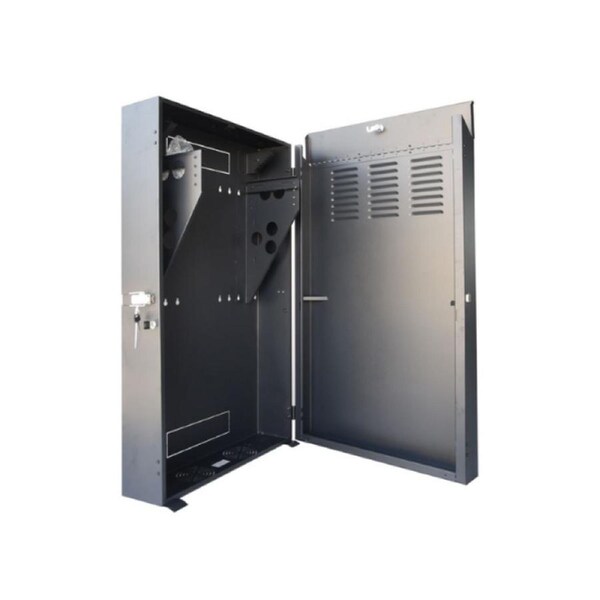

5U Vertical Wall Mount Server Rack H1090Mm X D250Mm
5U VERTICAL WALL MOUNT SERVER RACK H1090MM X D250MM
5U Vertical Wall Mount Cabinet is designed to save you space. Perfect for small network equipment and limited space networking environments, the low-profile of the cabinet allows your equipment to be mounted vertically in anywhere from communication rooms to retail stores, classrooms and offices.
Anywhere that requires a smaller footprint and security. The cabinet sits 250mm from the wall when mounted and will house 19" networking equipment with a depth up to 940mm, including 1U servers, UPS systems, battery packs, network switches and patch panels. In addition to 5U of rack space in the primary mounting area, there is also an adjustable 2U mounting bracket at the top of the cabinet for patch panels.
FEATURES
Supplied fully assembled
940mm max. device depth
Equipment mounts facing upwards in the cabinet
Constructed of cold-rolled steel
Cable entry glands at the top and bottom of the cabinet
Static load capacity 60kg
Reversible vented front door
Patch panel mounting bracket
Flip down the top door section for easy access to a patch panel
2-way Fan cut out on the base (Fans NOT included)
Houses 19" rack equipment in 5U of space
Rails adjust - unscrew them, slide them to the desired depth, and screw them back in
Threaded mounting holes support M6 mounting
Rack spaces marked for easy reference
Cable glands with removable covers allow cable routing through top and bottom
Push-out rectangular glands at back top and bottom
Adjustable 2U mounting bracket for patch panels up to 63.5mm deep
SPECIFICATIONS
Rack RU Size: 5RU
Cabinet Type: Wall Mount
Colour: Black
Material: Cold-rolled Steel
External Height: 1090mm
External Width: 660mm (incl. hinge)
External Depth: 250mm
External Height: 940mm (rail top to base)
Internal Width: 470mm
Rails: Adjustable 2U Rail & 5U with RU Markings
Shelf Quantity: N/A
Reversible Hinges: Yes
Tempered Glass: No
Carton Height: 1060mm
Carton Width: 720mm
Carton Depth: 320mm
Carton Weight: 34kg
PACKAGE CONTENTS
1 x 12 Sets of M6 Screws
1 x 4 keys (2 x pairs)
