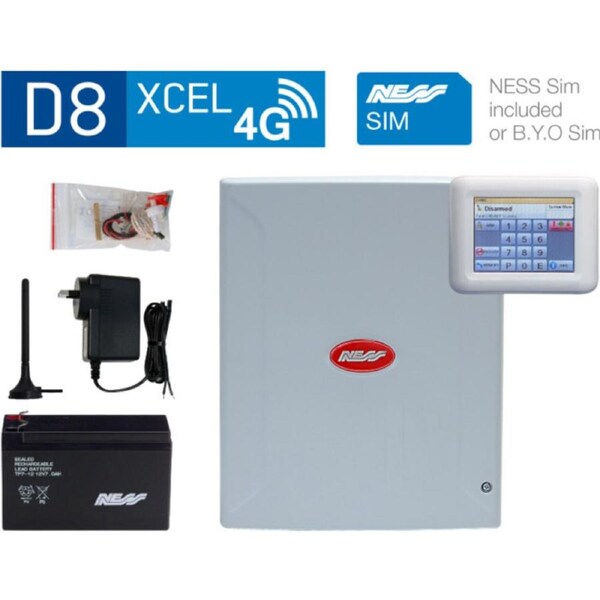

K-9308 D8XCEL4G PANEL WITH NAVIGATOR

K-9308 D8XCEL 4G PANEL WITH NAVIGATOR KEYPAD

Ness D8X control panels offer the widest possiblecombination of standard features and options to provide users and installers with the most powerful and flexible security panels ever made by Ness.

Features:

New in XCEL 4G

• 4G Cellular Communicator onboard
• Operation via SMS messaging
• Programming via SMS
• Alarm reports via SMS self-monitoring or Central Station
• Central Station monitoring in Contact ID and ARMOR IP formats
• Remote operation and programming via the free NessXCELapp
• The panel is not network locked. Activate the suppliedNess SIM or BYO SIM
• New PCB layout, AUX5~8 header added

D8XCEL4G Features

• 8 alarm zones.
• Supports up to 3 keypads (Navigator, Saturn or LCD)
• 56 user codes can be programmed to operate by keypad PIN, radio key or access card.
• Optional Ness Radio Interface for fully integrated wireless security.
• 3 Door Access Controller onboard with support for Weigand prox or fingerprint readers.
• Programmable Two Area partitioning can split the panelinto two independent areas plus a common area.
• Real Time Clock with AutoTime features - auto arm/disarm, auto aux outputs, time based user control.
• Home Mode allows partial arming, (eg, perimeter security overnight).
• Day Mode feature for daytime security of fire doors, coolrooms etc.
• Temporary Day Zones allows easy enabling/disabling of Day Mode.
• Keypad Panic & Duress feature.
• Fire Alarm feature with different siren tones.
• Highly flexible zone to output mapping.
• Onboard Vibration Sensor Analyser with programmable sensitivity.
• Use with Nessensor? vibration sensors.
• Multiple programmable EOL resistor values from 0k to 22k (2k2 resistors supplied).
• Siren chirp and strobe flash on arming with radio key.
• Quiet chirps option on arm/disarm by radio key.
• True Dynamic Battery Test actively tests the battery under load every hour and every time a keypad code is entered.
• 8 programmable auxiliary outputs.
• Enhanced serial data input/output via RS232.
• Automatic reset fuses.
• 30 event memory can be reviewed by LCD keypad or 80 event memory when using the Ness
• Navigator keypad or NessComms software.
• Standard defaults to suit most applications.
• Easy programming by keypad, SMS or NessComms? software.
• All programming data is permanently stored in a non-volatile memory.
• All inputs and outputs are heavily protected against lightning and high voltage supply transients.
• Dual voltage power input, 17VAC or 20VD

• BOX DIMENSIONS (W x H x D) 235 x 300 x 90 mm (Plastic housing)
• POWER INPUT 17VAC or 20VDC
• AUX POWER OUTPUT 13.8v DC @ 800mA
• QUIESCENT CURRENT DRAW 80mA with 1 keypad
• RECHARGEABLE BATTERY 12 volt 7.0 Amp/hour Sealed leadAcid
• BATTERY CHARGING CURRENT 350mA maximum, current limited
• DYNAMIC BATTERY TEST Backup battery is tested under load, hourly and on arming.
