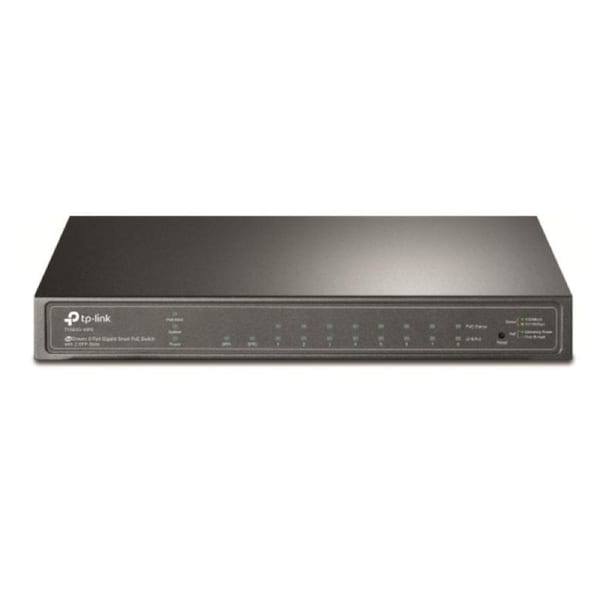

TP-Link TL-SG2210P JetStream 8-Port Gigabit Smart PoE Switch With 2 SFP Slots
TP-Link TL-SG2210P JetStream 8-Port Gigabit Smart PoE Switch With 2 SFP Slots
8 PoE Ports, 2 SFP Slots
8-Port Gigabit Smart PoE Switch with 2 SFP Slots
TL-SG2210P
- Features 8 PoE ports, with total PoE power budget of 53W and useful PoE power management features
- Gigabit Ethernet connections on all ports provide full speed of data transferring
- Integrated security strategy including 802.1Q VLAN, ACL, Port Security and Storm control help protect LAN area investment
- L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
- WEB/CLI managed modes, SNMP, RMON bring abundant management features
- Innovative energy-efficient technology saves up to 50% of power consumption
The TL-SG2210P supports 8 ports of IEEE 802.3af-compliant PoE and has a total power supply of 53W to power any 802.3af compliant power device. It's an efficient and cost-effective choice to work with wireless access points, surveillance cameras, IP phones and other PoE supported devices, while getting rid of cables or power lines running around. Compact and flexible, the TL-SG2210P is ideal to flexibly use PoE to deploy wireless access points or IP-based network surveillance cameras for projects or small business networks.
Advanced QoS FeaturesTo integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free.In conjunction with the Voice VLAN the switch supports, the voice applications will operate with much smoother performance.
Abundant Layer 2 FeaturesFor more application of layer 2 switches, TL-SG2210P supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function. Any more, the switches provide advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP Snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.
Enterprise Level Management FeaturesTL-SG2210P is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI) or industry-standard Command Line Interface(CLI). SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events.
PoE Features
- Standard: 802.3af compliant
- PoE Ports: 8 Ports
- Power Supply: 53W
- Static Link Aggregation/ Link Aggregation Control Protocol (LACP)
- Up to 512 VLANs simultaneously(out of 4K VLAN IDs)
- STP/RSTP/MSTP
- IGMP Snooping
- LLDP(LLDP-MED)
- 4 priority queues
- Support IEEE 802.1P
- DSCP QoS
- Rate limit feature
- Access Control List (L2~L4 ACL)
- Port Security
- Storm Control
- SSL and SSH encryptions
- Web-based GUI
- Command Line Interface(Telnet)
- SNMP v1/v2c/v3
- RMON (1, 2, 3, 9 group)
| IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad, IEE 802.3af, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p |
| 8 10/100/1000Mbps RJ45 Ports 2 1000Mbps SFP Slots (Auto-Negotiation/Auto MDI/MDIX) |
| 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 100BASE-FX: MMF, SMF 1000BASE-X: MMF, SMF |
| Standard: 802.3af compliant PoE Ports: 8 Ports Power Supply: 53W |
| 8.2 x 4.9 x 1.0 in (209 x 126 x 26mm) |
| Fanless |
| Maximum (PoE on): 63.4W (220V/50Hz) Maximum (PoE off): 10.4W (220V/50Hz) |
| 100~240VAC, 50/60Hz |
| 20Gbps |
| 8k |
| 512KB |
| 14.9Mpps |
| 9216 Bytes |
| IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group) Spanning Tree STP/RSTP/MSTP BPDU Filtering/Guard TC/Root Protect Loop back detection 802.3x Flow Control LLDP(LLDP-MED) |
| Support 802.1p CoS/DSCP priority Support 4 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting Voice VLAN |
| Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs) |
| L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID Time Range Based |
| SSH v1/v2 SSL v2/v3/TLSv1 Port Security Broadcast/Multicast/Unknown unicast Storm Control |
| Web-based GUI and CLI management SNMP v1/v2c/v3, compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) CPU Monitoring Port Mirroring Time Setting: SNTP Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS |
| CE, FCC, RoHS |
| TL-SG2210P Power Adapter Quick Installation Guide Resource CD Rubber Feet |
| Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux. |
| Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| 5 years limited warranty. Advanced replacement service is available. |
| Specification | Value |
|---|---|
| MPN | TL-SG2210P |
| Product Condition | Brand New/Unused |
| SKU | 217952 |
