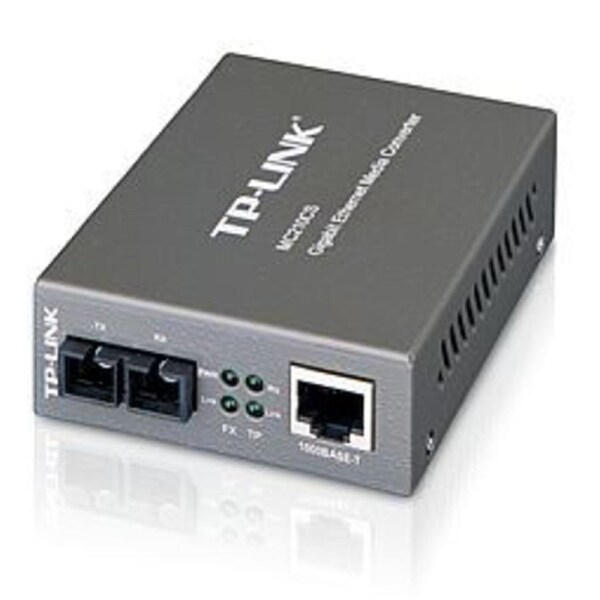

TP-Link MC210CS 1000Mbps RJ45 to 1000Mbps single-mode SC fiber Converter, Full-duplex, up to 15Km, switching power adapter, chas

TP-Link MC210CS Gigabit Single-Mode Media Converter Extends fiber distance up to 15km

Works at 1000Mbps in Full-Duplex mode for both TX port and FX port
Supports auto MDI/MDIX for TX port
Provides switch configuration of Force /Auto transfer mode for FX port.
Extends fiber distance up to 15km
Easy-to-view LED indicators provide status to monitor network activity easily
External power supply

What This Product Does
The MC210CS is a media converter designed to convert 1000BASE-LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX/LH standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 15 kilometers.

MEDIA CONVERTER & MODULE
Standards and Protocols IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Basic Function Full Duplex Flow Control (IEEE 802.3x)
Extends fiber distance up to 15km
Ports 1 1000M SC/UPC port
1 1000M RJ45 port (Auto MDI/MDIX)
Wave Length 1310nm
Network Media 1000BASE-FX Single-mode Fiber
Network Media 1000BASE-T UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
LED Indicators PWR, LINK, RX
Dimensions (W*D*H) 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
Power Supply External Power Adapter
Max Power Consumption 5.5W
Safety & Emission FCC, CE, RoHS
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

We dispatch order within 1 business day, We are providing the free shipping service via Australia Post and Aramex or Couriers please to deliver the parcels, it usually takes about 2-6 business days to receive the order.

DOA Returns:

In the event that your item has arrived faulty, please inform us within 7 days of receiving the item. We will organise a replacement or refund after the faulty item has been returned in its original conditions with full packaging. The processing time for DOA is generally 1-2 weeks from the time we receive the returns, since we will send the faulty item to the manufacturer for testing.

Warranty Returns:

Standard manufacturer's warranty will apply after DOA period, and within the specified warranty term (commonly 12 months). No warranty applies to software, accessories and consumables. Physical damage is not covered by DOA or Warranty.

Change of Mind Returns:

If you change your mind about a purchase, it is at our discretion to accept a return for refund. We will generally accept a return provided you contact us within 7 days of receiving the product, the product is in their original condition, and the product is not a consumable or software. Change of mind returns will only be eligible for a refund on the product’s sale price, and in some cases, a partial refund on the product’s sale price.

Items need to be returned within 30 days of delivery in its original un-opened and sealed packaging at buyer's cost. A restocking fee of 15% of the purchase price will be charged when the returned item has been opened or seal broken, since the item is no longer considered as brand new. If the item has been used, the restocking fee may be up to 50%. The shipping cost and restocking fee will be deducted from your refund.

24 Month
