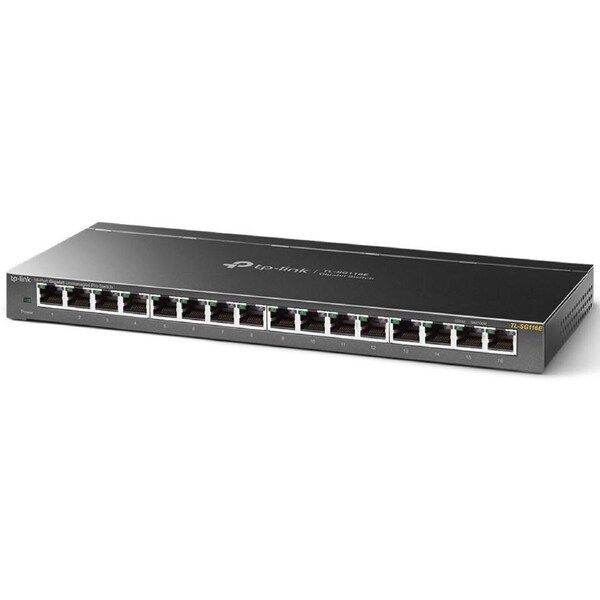

TP-Link TL-SG116E 16-Port Gigabit Unmanaged Pro Switch Desktop/Wall Mounting L2 Features 32xVLAN 32Gbps Capacity 23.81Mpps 8K MAC 4.1Mb Buffer Fanless
TP-Link TL-SG116E 16-Port Gigabit Unmanaged Pro Switch Desktop/Wall Mounting L2 Features 32xVLAN 32Gbps Capacity 23.81Mpps 8K MAC 4.1Mb Buffer Fanless
16 10/100/1000Mbps RJ45 ports
Plug and play, with no configuration required
Durable metal casing of superior quality and professional appearance
Intelligent management via a web user interface and downloadable utility
Green technology reduces power consumption
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface 16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Power Supply External Power Adapter(Output: 9VDC/0.6A)
Power Consumption Maximum: 9.27W (220V/50Hz)
Dimensions ( W x D x H ) 11.3*4.4*1.0 in. (286*111.7*25.4 mm)
PERFORMANCE
Switching Capacity 32Gbps
Packet Forwarding Rate 23.81Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1Mb
Jumbo Frame 9KB
SOFTWARE FEATURES
Quality of Service Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Transmission Method Store-And-Forward
We dispatch order within 1 business day, We are providing the free shipping service via Australia Post and Aramex or Couriers please to deliver the parcels, it usually takes about 2-6 business days to receive the order.
DOA Returns:
In the event that your item has arrived faulty, please inform us within 7 days of receiving the item. We will organise a replacement or refund after the faulty item has been returned in its original conditions with full packaging. The processing time for DOA is generally 1-2 weeks from the time we receive the returns, since we will send the faulty item to the manufacturer for testing.
Warranty Returns:
Standard manufacturer's warranty will apply after DOA period, and within the specified warranty term (commonly 12 months). No warranty applies to software, accessories and consumables. Physical damage is not covered by DOA or Warranty.
Change of Mind Returns:
If you change your mind about a purchase, it is at our discretion to accept a return for refund. We will generally accept a return provided you contact us within 7 days of receiving the product, the product is in their original condition, and the product is not a consumable or software. Change of mind returns will only be eligible for a refund on the product’s sale price, and in some cases, a partial refund on the product’s sale price.
Items need to be returned within 30 days of delivery in its original un-opened and sealed packaging at buyer's cost. A restocking fee of 15% of the purchase price will be charged when the returned item has been opened or seal broken, since the item is no longer considered as brand new. If the item has been used, the restocking fee may be up to 50%. The shipping cost and restocking fee will be deducted from your refund.
24 Month
