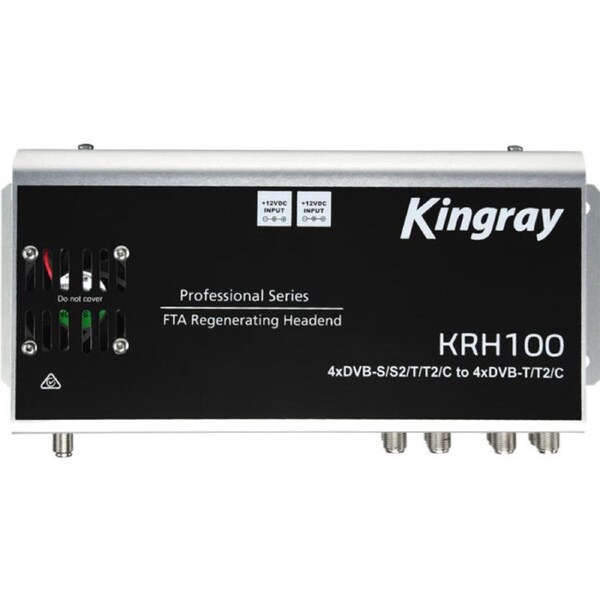

KINGRAY KRH100 FTA REGENERATING HEADEND

KRH100 FTA REGENERATING HEADEND - KINGRAY

Introducing the KRH100 all-in-one compact headend, capable of receiving 4 individual services, terrestrial, satellite or cable and converting them to either 4 x DVB-T or DVB-C RF Output channels.

It supports ?pool? technology, meaning the user can select any program from any of the 4 inputs and assign them to any of the 4 RF output channels. The KRH100 is more than just a FTA headend, as it can regenerate signal with a poor MER level as well as a poor digital power input level.

The embedded web server of the KRH100 provides a very user-friendly interface and with the LAN input you can access the device locally or remotely.

Its compact size and its powerful features make the KRH100 the ideal solution to distribute FTA (Free-To-Air) TV programs from satellite (DVB-S/S2), terrestrial (DVB-T/T2) or cable (DVB-C) sources to a CATV output using DVB-T or DVB/C.

• Input: 4 x DVB-S/S2/T/T2/C
• Output: 1 x RF output containing up to 4 x DVB-T/C channels (software selectable)
• Input Frequency Range: 174~862MHz (DVB-T/T2/C) & 950~2150MHz (DVB-S/S2)
• Output Frequency Range: 174~862MHz (DVB-T/C)
• Maximum Output Power Level: 90dB
• MER Output: >42dB
• Dual Power Supply: 1 + 1 backup
• 5 Years Warranty on the main unit, 2 Years Warranty onthe power supply
• Power Consumption: 1.8A maximum
• Operating Voltage: 12V DC 2.5A

In the box:

• KRH100
• 1 x 12V DC Power Supply
