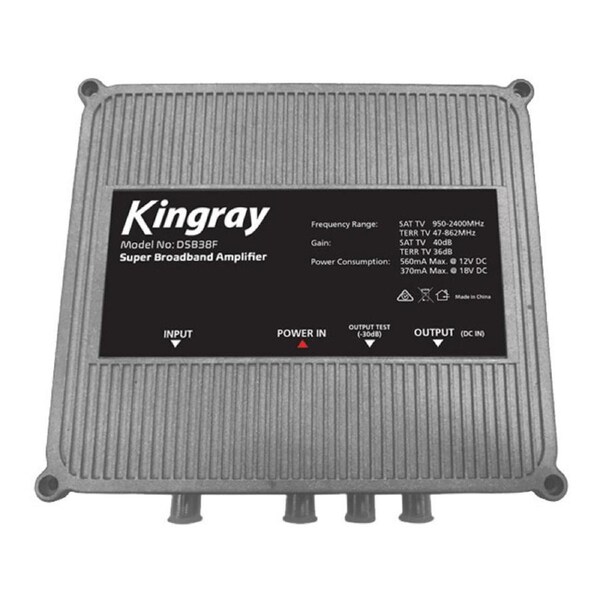

DSB38F SUPER BROADBAND AMPLIFIER KINGRAY FOX APP. # F30977

DSB38F SUPER BROADBAND AMPLIFIER - KINGRAY

Optimised for digital TV signal amplification.

The Kingray DSB38F is a high gain Free-to-Air & Satellite distribution amplifier for use in SMATV applications. It features a combined single input & single output connector, with adjustable gain and equalisation controls, as well as input attenuators.

Specifications;

• Frequency Range Terrestrial FTA 47-862 MHz
• Frequency Range Terrestrial Satellite 950-2400 MHz
• Input/Outputs 1 x Input / 1 x Outputs
• Test Port -30dB
• Maximum Gain
  • FTA 36dB
  • Satellite 41dB Max.
• Input 105dB Min. Input 70dB
• Return Loss >10dB
• Gain Control 10dB FTA
• Equalisation 10dB Satellite Equalisation 10dB Satellite Input Attenuator -10dB FTA Input Attenuator -10dB
• Maximum Output Level
  • FTA - IMB3 = 60dB (DIN450004B) 120dB
  • Satellite - IMB3 = 35dB (EN50083-3) 122dB
• Supply Voltage 12V or 18V DC
• Max. Current Consumption 560mA @ 12V DC 370mA @ 18V DC
• Powering Options
  • Option 1 Locally via a PSK124F or PSK18F
  • Option 2 Remotely via the RF input (800mA max.)
• Dimensions in mm 183 (L) x 150 (W) x 52 (H)
• Weight 880g

CAUTION: This amplifier contains devices that are sensitive to Electrostatic Discharge (ESD).
