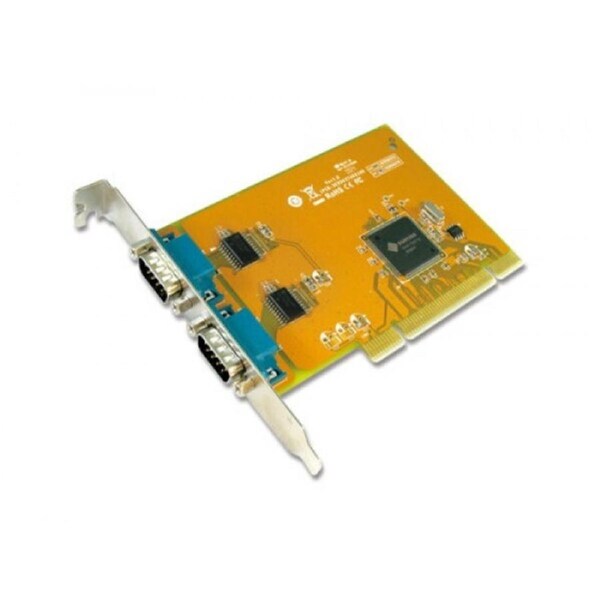

(LS) Sunix COMCARD-2P SER5037A Dual Port Serial IO Card PCI Card; speeds up to 115.2Kbps; Support Microsoft Windows, Linux, and DOS(L)

Sunix COMCARD-2P SER5037A Dual Port Serial IO Card PCI Card; speeds up to 115.2Kbps; Support Microsoft Windows, Linux, and DOS

Description:

• Product Description 2-port RS-232 Universal PCI Serial Board
• Serial Communication
• Interface RS-232
• Controller SUNIX SUN1989 (16C950 UART Compatible)
• Bus Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1
• No. of Port 2-port
• IRQ & IO Assigned by System
• FIFO 128 byte (Hardware)
• Signal TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI
• Baud rate 50 bps to 115.2 Kbps
• Data bit 5,6,7,8
• Stop bit 1,1.5,2
• Parity None, Even, Odd, Space, Mark
• Flow Control None, Xon/Xoff, RTS/CTS
• Protection ±2KV ESD protection for each signal Human Body Model (HBM)
• PCB connector DB9 Male
• Driver Support
• Windows Client XP / Vista / 7 / 8.x / 10 (X86/X64)
• Windows Server 2003 / 2008 / 2012 / 2016 (X64)
• Windows Embedded Windows XP Embedded / POSReady 2009 / POSReady / Embedded System 2009
• Linux Linux 2.x / 3.x / 4.x
• DOS DOS
• FreeBSD FreeBSD 5.3~5.5 / 6.0~6.4
• QNX QNX 6.3.2/6.4.0
• * IBM OS/2 WARP 3/WARP 4
• * SCO UnixWare UnixWare 7.1.3/7.1.4/ Open Server 5.0.7/6.0
• * Sun Microsystems Solaris 10

Note : “ * ' Supported by special inquiry.

Regulatory Approvals

• Hardware EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, RoHS

Software Microsoft WHQL Windows

• Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64)
• Windows Server: 2003 / 2008 / 2012 / 2016 (X64)

Environment

• Operation Temperature 0 to 60°C (32 to 140°F)
• Operation Humidity 5 to 95% RH
• Storage Temperature -20 to 85°C (-4 to 185°F)

Dimensions

• PCB Dimension 120 x 82 mm
• Bracket Standard 121 mm
• Bracket Space 1
