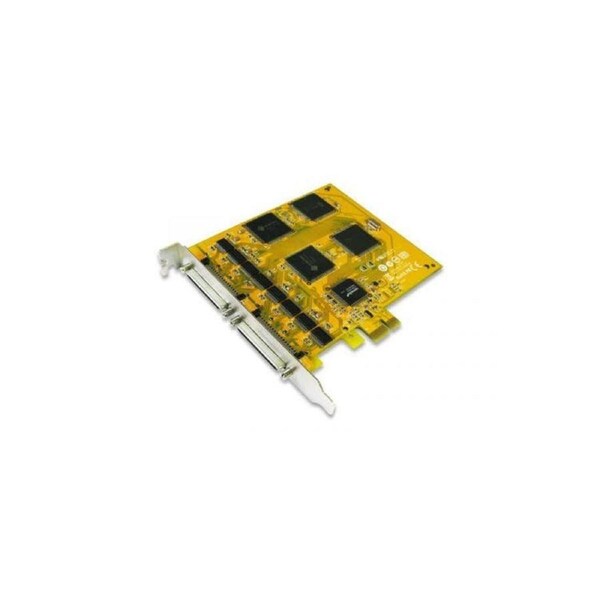

(LS) Sunix 16-port RS-232 High Speed PCI Express Serial Board, 921.6Kbps, Support Microsoft Windows, Linux, and DOS (LS)

Sunix 16-port RS-232 High Speed PCI Express Serial Board, 921.6Kbps, Support Microsoft Windows, Linux, and DOS

• Expands 16 independent RS-232 serial ports with communication speeds up to 921.6Kbps.
• High speed SUN1999 16C950 compatible UART controller on-board.
• Designed to meet PCI Express Base Specification Revision 1.1.
• Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
• On-chip hardware auto flow control to guarantee no data loss.
• Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
• Plug-n-Play, I/O address and IRQ assigned by BIOS.
• Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
• Support Microsoft Windows, Linux, and DOS.

Serial Communication

• Interface RS-232 Signal TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
• Controller SUNIX SUN1999
• (16C950 UART Compatible) Baud rate 50bps ~921.6Kbps
• BUS PCI Express one lane (x1) Stop bit 1, 1.5, 2
• No. of Port 16-port Parity even, odd, none, mark, space
• IRQ & IO Assigned by System Flow Control None, Xon/Xoff, RTS/CTS
• FIFO 128byte Hardware PCB Connector Mini SCSI 68 Female
• Protection ±15KV ESD protection for each signal Human Body Model (HBM)
• ±15KV IEC1000-4-2 Air Gap Discharge
• ±8KV IEC1000-4-2 Contact Discharge

Dimension

• PCB Dimension 120 x 110 mm
• Bracket Standard 121 mm
• Bracket Space 1
