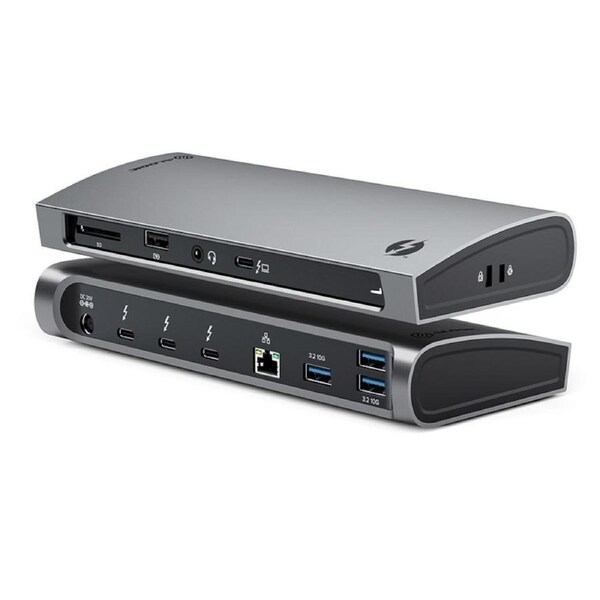

Alogic Thunderbolt 4 BLAZE Docking Station Triple Thunderbolt/USB-C Outputs [TB4D3TB]
Alogic Thunderbolt 4 BLAZE Docking Station Triple Thunderbolt/USB-C Outputs
Designed for when speed and performance matter, the dock provides a massive 40Gbps bandwidth for connecting external displays and high-speed peripherals such as external hard drives. Unlike existing Thunderbolt docks which only provide a single Thunderbolt downstream port, the ALOGIC BLAZE docking station can connect up to 3x downstream Thunderbolt 4 / USB 4.0 peripherals. With the addition of the inbuilt SD 4.0 card reader this dock offers unparalleled productivity for creative professionals.
- Thunderbolt/USB-C docking station with lightning fast Thunderbolt 4 performance
- Comprehensive support for connecting peripherals:
• 3x Thunderbolt 4 / USB 4.0 (40Gbps)
• 3x USB-A 3.1 Gen 2 (10Gbps)
• 1x USB-A 2.0 (480Mbps)
• 3.5 Audio Combo Jack, Gigabit Ethernet Port - Supports up to two 4K monitors at 60Hz (Thunderbolt mode) or single 4K at 60Hz (USB-C 3.x mode)
- Thunderbolt 4/3 and USB-C 3.x/4.0 support; compatible with all laptops
- Power Delivery of up to 90W to charge and power connected laptops
- Gigabit Ethernet Port for wired networking in corporate environments
- Metal alloy housing for added durability against day-to-day wear and tear
Physical Characteristics
Dimension: 194 x 84 x 30mm (L x W x H)
Colours: Space grey and black
Materials: Premium alloy housing and ABS
Warranty
2 years
Input
Thunderbolt 4 or USB-C (with DisplayPort Alt Mode)
Output
3 x USB-C Thunderbolt 4/USB 4.0, 40Gbps, 3A
3 x USB-A 3.1 Gen 2, 10Gbps
1 x USB-A 2.0, 480Mbps, BC1.2 1.5A
1 x 3.5mm Combo Jack
1 x Gigabit Ethernet Port
1 x SD Card Reader (SD 4.0)
Up to 90W power to laptop
Data Rate
3x USB-C 4.0: up to 40Gbps
3x USB-A 3.1 Gen 2: 10Gbps
1x USB-A 2.0: 480Mbps
1x Gigabit Ethernet port: 10/100/1000Mbps
Power
135W External Power Adapter (supplied)
Dock can provide up to 90W power to computer
Resolution
Thunderbolt 3/4, USB 4.0 Hosts
Dual Display: 4K (3840 x 2160) at 60Hz*
USB-C USB 3.x Hosts
Single Display: 4K (3840 x 2160) at up to 60Hz†
* M1 based Apple devices can only support a single external monitor connected via Thunderbolt or USB-C DisplayPort Alternate Mode.
† USB-C port must be DisplayPort 1.4 Alternate Mode compatible for 4K output at 60Hz. Machines supporting DisplayPort 1.2 will output resolutions up 2560x1600 at 60Hz or 4K at 30Hz.
Audio Support
Analogue audio line/microphone in/out
Package Includes
1 x Thunderbolt 4 BLAZE Docking Station
1 x Power Supply
4 x 1m Power Cord (US, UK, AU, EU)
1 x User Manual
Device Compatibility
Mac OS Sierra 10.13 or later with Thunderbolt 3 or 4 port
Windows 10 with USB-C or Thunderbolt 3 or 4 port
Security
Lock Slot x 1
Nano Lock Slot x 1
