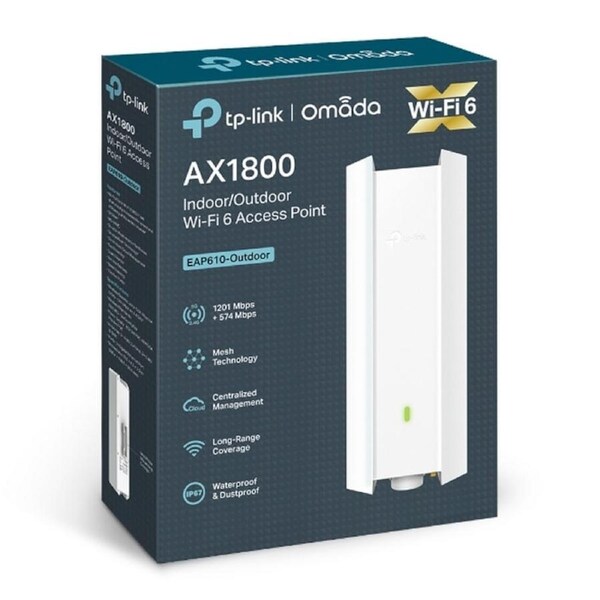

TP-Link EAP610-Outdoor AX1800 Indoor/Outdoor WiFi 6 Access Point, 1.8 Gbps

TP-Link EAP610-Outdoor AX1800 Indoor/Outdoor WiFi 6 Access Point

• Superior WiFi 6 Speeds: Delivers dual-band speeds of up to 1.8 Gbps powered by the latest WiFi 6 technology†
• Higher Network Efficiency: Enjoy faster speeds on more devices with less lag via OFDMA and MU-MIMO
• Long-Range Coverage: Dedicated high-power amplifier and professional antennas with IP67 weatherproof enclosure
• Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment**
• Stay Smooth with Fast Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points**
• Centralised Cloud Management: Integrates into Omada SDN for cloud access and remote management

HARDWARE FEATURES

• Interface :1x Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)
• Button :Reset
• Power Supply :• 802.3at PoE
  • 48V/0.5A Passive PoE (PoE Adapter Included)
• Power Consumption :• EU: 12.5W (802.3at PoE or Passive PoE)
  • US: 14.7W (802.3at PoE or Passive PoE)
• Dimensions ( W x D x H ) :• 280.4x106.5x56.8 mm (without antenna & mounting kit)
• Antenna :• 2.4 GHz: 2x 4 dBi
  • 5 GHz: 2x 5 dBi
• Weatherproof Enclosure :IP67
• Mounting :Pole/Wall Mounting (Kits included)

WIRELESS FEATURES

• Wireless Standards :IEEE 802.11ax/ac/n/g/b/a
• Frequency :2.4 GHz, 5 GHz
• Signal Rate :• 802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80)
  • 802.11ac: 6.5 Mbps to 867 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80)
  • 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
  • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 802.11b: 1, 2, 5.5, 11 Mbps
  • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• Transmit Power :• CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP)
  • FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz)
• Wireless Functions :• 1024-QAM
  • 4x Longer OFDM Symbol
  • OFDMA
  • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS (WMM)
  • MU-MIMO
  • Omada Mesh**
  • Seamless Roaming**
  • Band Steering
  • Load Balance
  • Airtime Fairness
  • Beamforming
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client
• Wireless Security :• Captive Portal Authentication**
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Rogue AP Detection
  • 802.1X Support
  • WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

MANAGEMENT

• Omada App :Yes
• Centralized Management :• Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
• Cloud Access :Yes, through
  • OC300
  • OC200
  • Omada Software Controller
• Email Alerts :Yes
• Management MAC Access Control :Yes
• SNMP :v1, v2c
• System LoggingLocal/Remote Syslog :Yes
• SSH :Yes
• Web-based Management :Yes
• L3 Management :Yes
• Multi-site Management :Yes
• Management VLAN :Yes

OTHERS

• Certification :CE, FCC, RoHS
• Package Contents :• Access Point EAP610-Outdoor
  • Passive PoE Adapter
  • Power Cord
  • Mounting Kits
  • Installation Guide
• System Requirements :Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
• Environment :• Operating Temperature: -30-70 ? (-22-158 ?)
  • Storage Temperature: -40-70 ? (-40-158 ?)
  • Operating Humidity: 10-90% RH non-condensing
  • Storage Humidity: 5-90% RH non-condensing
