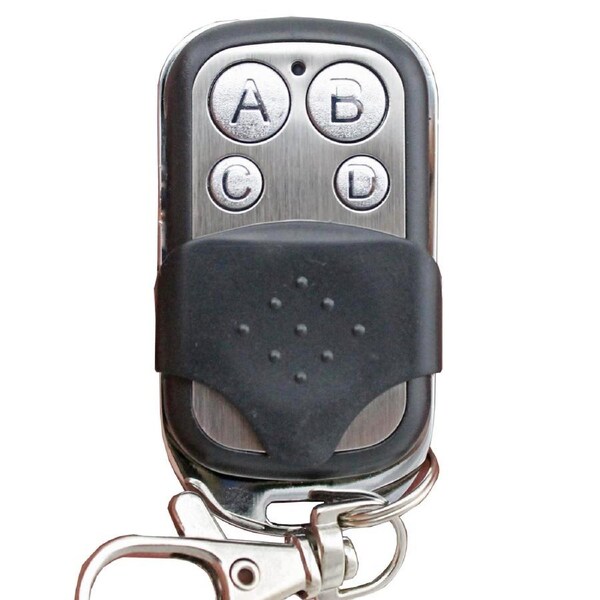

Lockmaster Genuine Garage/Gate Remote
Compatibility:
- Casar 600
- Casar 800
- DSC Series
- DSR Series
- EK Series
- EK 700M (Swing Gate)
- EKD Series
- HUH-CR (Double Swing Gate)
- LM601
- LM602
- LM901
- LM902
- MK1101
- MK1102
- MK1301
- MK1302
- MK1501
- MK1502
- SAG Series
- SCG Series
- SFG Series
- SFG 18H
- SFG 21H
- GO-SGO-DSR1800-AC
- Will not work with any other models
- Not suitable with Lockmaster SRD range
Features:
- Transmitter Frequency: 433 MHz
- Battery: 27A
- Coding Type: Rolling
- Control up to 4 doors
- Button Slide Cover
Dimensions: 3.6W x 7L x 1.40D cm
Remote Includes:
- Free Battery
- Free Key ring
- Long Range
- Heavy Duty Design
- In-built Battery
Instructions:
Swing Gates:
1. Remove the cover of the gate opener
2. Locate and press once and immediately release the LEARN on the motor board
3. Ln will be displayed on the motor board
4. Immediately press any button on the remote you would like to code to the motor twice in less than 2 secs
5. Ln will flash for 4 secs to indicate the coding has been successful
6. Test the remote
Sliding Gates:
1. Remove the cover of the gate opener
2. Locate and press once and immediately release the LEARN on the motor board
3. The REM LED will illuminate
4. Immediately press any button on the remote you would like to code to the motor twice in less than 2 secs
5. The REM LED will flash for 4 secs to indicate the coding has been successful
6. Test the remote
| Battery Type: | |
| Battery Access Type: | Tool Required |
| AS62368.1 Compliant: | N/A |
| Battery Included: | Yes |
| Contains Coin Battery: | No |
