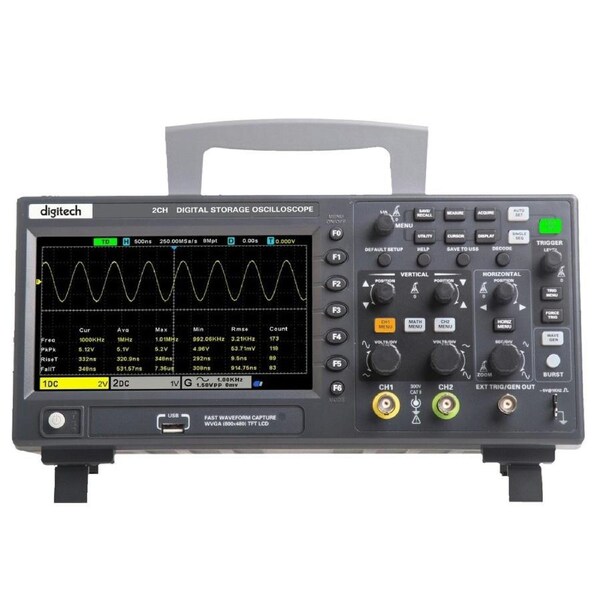

100MHz Digital Oscilloscope with 8M Memory Depth

Make designing or repairing electronics easier with this affordable dual channel digital oscilloscope. Features include 7" colour LCD screen with easy to use interface. two independent channels and controls, 100Mhz bandwidth & 25MHz waveform generator, and an auto scale function that detects sine and square waves automatically. 14 trigger modes include Edge, Pulse, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, and IIC, and 5 serial protocol triggers and decodes include RS232/UART, I2C, SPI, CAN, and LIN. Other features include two 3-digit digital voltmeters, and 6-digit hardware frequency indicator. It also boasts 32 kinds of auto measurements with statistics, real-time statistics of maximum, minimum, standard deviation, etc. Connect and control directly from a computer, or plug in a USB thumb drive to save oscilloscope setups, waveforms, reference waveforms, CSV files and images. Mains powered. Supplied with 10:1 passive probe with 1.5m lead, 2 x BNC to clip test leads, USB cable, and power lead.

Features:

- 8M memory depth (single channel)
- Waveform generator
- Abundant SCPI remote command control
- USB Host/Device
- Dual window mode
- 32 auto measurements
- 5 serial protocol triggers and decodes
- Two Digital voltmeters

SPECIFICATIONS
- Display: 7" TFT
- Resolution: 800 x 480px
- Display type: Point, vector
- Interface: USB Host, USB device
- Sampling rates: Up to 1GSa/s
- Vertical range: 2mV/div ~ 10V/div
- Vertical resolution: 8bit
- Waveform generator: Sine, square, ramp, exponential, noise, DC
- Weight: 1.9kg
- Dimensions: 318(L) x 150(H) x 110(W)mm
