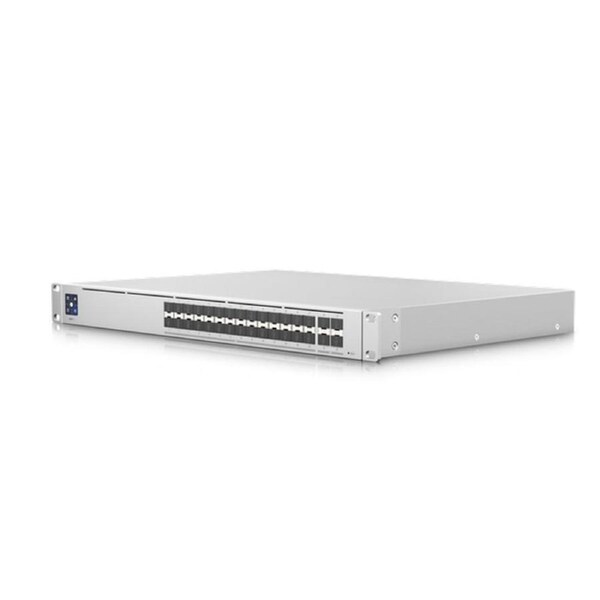

Ubiquiti UniF Aggregation Switch Pro, 28-port 10G SFP+ & 4-port 25G SFP28 Ports [USW-Pro-Aggregation-AU]

UniFi Pro Aggregation SwitchUbiquiti UniF Aggregation Switch Pro, 28-port 10G SFP+ & 4-port 25G SFP28 Ports, Layer 3 Switch, 760Gbps Switching Capacity

The Switch Pro Aggregation is a fully managed, Layer 3 switch with (28) 10G SFP+ ports and (4) 25G SFP28 ports designed to enhance your network's switching capacity and performance by creating high-bandwidth aggregation links. This rack-mountable switch also offers 760 Gbps switching capacity and features a 1.3' LCM color touchscreen that concisely displays key system and connection insights.
Additionally, the Switch Pro Aggregation offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

(1) 1.3' LCM color touchscreen with AR switch management
(28) 10G SFP+ ports
(4) 25G SFP28 ports
(1) USP RPS DC input
760 Gbps switching capacity
Layer 3 switching features
Mechanical
Mechanical
Dimensions442 x 325 x 44 mm
(17.4 x 12.8 x 1.7')
WeightWithout Mount: 4.6 kg (10.14 lb)
With Mount: 4.7 kg (10.36 lb)
Enclosure MaterialSGCC Steel
Hardware
Total Non-Blocking Throughput380 Gbps
Switching Capacity760 Gbps
Forwarding Rate565.44 Mpps
Max. Power Consumption100W
Power Method(1) Universal AC input, 100-240VAC, 2A Max, 50/60 Hz
(1) USP-RPS DC input, 11.5VDC, 8.7A
Power SupplyAC/DC, Internal, 100W
Network Interface(28) 1/10 Gbps SFP+ Ethernet
(4) 1/10/25 Gbps SFP28 Ethernet*
LCM Display(1) 1.3' Touchscreen
Management InterfaceEthernet In-Band
ModesSMB Layer 3 10/25 G Fiber Switch
ESD/EMP ProtectionAir: ± 16kV, Contact: ± 12kV
Operating Temperature-5 to 40° C (23 to 104° F)
Operating Humidity10 - 90% Noncondensing
*The four SFP28 ports don't support mixed speed at 25Gbps mode.
Once one of the SFP28 ports is configured at 25Gbps mode, the others will be limited at 25Gbps too.
The SFP28 ports only support mixed speed when all ports are at 1Gbps or 10Gbps.
