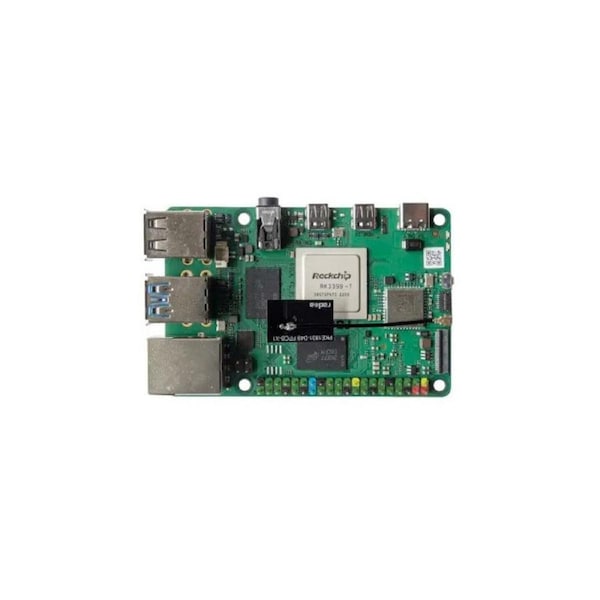

OKdo x Radxa ROCK Pi 4 C+ 4GB Single Board Computer

The ROCK 4C+ is a reliable, multifunctional and high-performing single-board computer based on a robust Rockchip RK3399T SoC, Dual Cortex(R) A72 CPU and Arm Mali(TM) T860MP4 GPU. Developed by OKdo Technology in collaboration with Radxa, the board incorporates class-leading functionality suitable for multiple multimedia and industrial applications, ensuring outstanding reliability.

With the onboard On/Off power button, ROCK 4C+ is an energy-efficient single-board computer. It also features multiple storage capabilities, such as 4GB 64-bit RAM and eMMC socket, an integrated fan control, an external antenna, an audio jack, dual-display support and two micro-HDMI ports supporting displays up to 4Kp60 resolution.

ROCK 4C+ is extremely practical, as it is compatible with multiple software options, including Android, Debian/Ubuntu Linux, the full implementation of the Arm architecture v8A instructions set, and others. The 40P GPIO extension supports a wide range of interface options, providing the board with high connectivity capabilities, such as Bluetooth 5.0 with BLE, Gigabit Ethernet and Wireless LAN and extensive compatibility with a wide range of accessories.

What are the main benefits of the ROCK 4C+?

On board on/off power button
Integrated fan control forthermal management
Dual-display support
Two micro-HDMI ports supporting displays up to 4Kp60 resolution
Multiple connectivity capabilities so less add on hardware required, including Bluetooth 5.0 with BLE, Gigabit Ethernet & Wireless LAN
A 40P GPIO expansion header provides extensive compatibility with a wide range of accessories
Get more multiple memory options, including 4GB RAM and a speed eMMC socket

Key technical features of the ROCK 4C+:

Rockchip RK3399T SoC
Arm(R) big.LITTLE(TM) technology (Dual Cortex(R)-A72 frequency 1.5GHz and a Quad Cortex-A53 frequency 1.0GHz)
Arm Mali(TM) T860MP4 GPU, supporting OpenGL(R) ES 1.1 /2.0 /3.0 /3.1 /3.2, Vulkan(R) 1.0, Open CL(R) 1.1 1.2, DirectX(R) 11.1
Dual Arm Cortex - M0
Dual channel 4GB 64bit LPDDR4
eMMC connectors
Display supporting mirror and extended modes
Dual micro-HDMI
MIPI DSI
H.265/VP9 (HEVC) hardware decode (up to 4Kp60)
H.264 hardware decode (up to 1080p60)
USB TypeC(TM) power input

Interfaces:

802.11 b/g/n/ac (WiFi 5) Wireless LAN
Bluetooth 5.0 with BLE
1 x micro-SD card slot
2 x HDMI ports supporting displays up to 4Kp60 resolution and 2Kp60
2 x USB2 HOST ports
1 x USB3 OTG/HOST port, 1x USB3 HOST port
1 x Gigabit Ethernet port (supports PoE with addon PoE HAT)
1 x camera port (2lane MIPI CSI)
1 x display port (4lane MIPI DSI)
40 x user GPIO supporting a wide range of interface options: 2 x UART, 2 x SPI bus, 2 x I2C bus, 1 x PCM/I2S, 1 x SPDIF, 1 x PWM, 1 x ADC, 6 x GPIO, 2 x 5V DC power in, 2 x 3.3V power pin.

Supported software:

Full implementation of the Arm architecture v8A instructions set, Arm NEON Advanced SIMD (single instructions, multiple data) support for accelerating media and signal processing
Armv8 cryptography extensions
TrustZone(R) technology support
Debian/Ubuntu Linux support
Android 7.1/Android 5.0/Android 10/Android 11 support
GPU enabled Al stack
Hardware access/control library for Linux/Android
