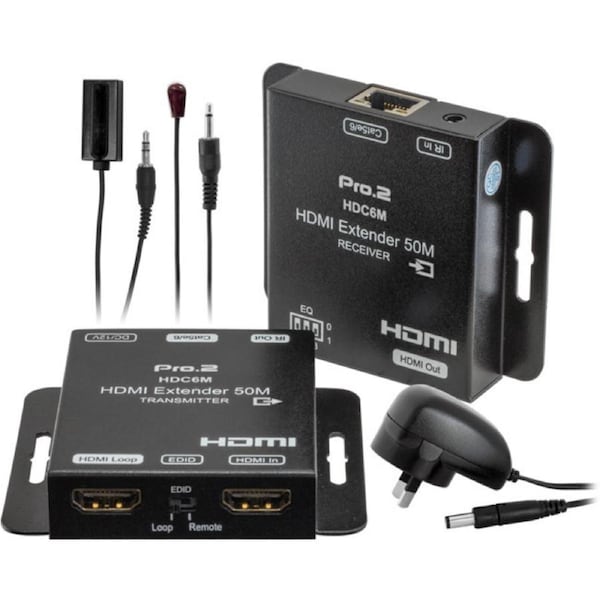

HDC6M HDMI OVER CAT6 EXTENDER [50M] 1080P LOOPOUTEDID POC

REQUIRES IEEE-568B CABLE TERMINATION STANDARDS AND SOLID CORE CABLE. USE SOLID/FTP CAT5/6 CABLES.

If you are running a cable 15 metres or more, make sure you use a SOLID CAT5/6 cable. This product may not workwith standard stranded ethernet cable. See related items forcabling that will work this product. 60m distance has been tested fine on F/UTP solid cat6 cable.

FYI: Most of the pre-made cat5/6 leads on the market are stranded cable not solid.

A neat and simple high definition HDMI mini extender kit.This kit extends your high definition AV sources from Blu-ray DVD Players, PS3 and XBOX, etc. up to a maximum of 50m via single solid CAT5E/ 6 cables through the wall cavities. The EDID feature increases its compatibility with players or displays. It supports a full 1080P high definition and integrates an infra-red control extender forfull controllability from the receiving end. RJ45 connections on the rear of both units make it for easy connection.
With local HDMI loop out on the transmitter, the device enables local viewing function. Which means you can view thevideo source locally as well as on the extended end.
Compared with the popular model, HDC6L, the compact design makes it easy to be mounted to the back of your TV and the new power over cable feature means it only requires one power supply at the transmitter end, no power supply is required at the receiver, which makes the installation even easier.

FEATURES

• Compact size, easy mount;
• Supports 1080P 60HZ@YUV 4:4:4;
• Transmits HDMI Audio/Video Signals and IR over a 50m single solid Cat5e/6 Cable;
• Local HDMI loop out on the transmitter;
• Power over cable, one power supply required on the transmitter;
• EDID control, copy local or remote EDID settings with the flick of a switch;
• Distance switch, DIP switch to set network cable distance up to 50m;
• HDCP compliant;
• Supports 24bit Deep Colour;
• Supports PCM, Dolby True-HD, DTS-HD master audio;
• Audio sampling rate up to 48KHz, support 7.1 channels;
• Supports 3D video format;
• Follows IEEE-568B cable termination standards and solid cables are preferred.

WHAT IS IN THE BOX?

• Transmitter x 1
• Receiver x1
• IR emitter x 1
• IR receiver x 1
• DC12V 1A power supply x 1
• Manual x 1

Ship out the order within 24-48 hours.

Change of mind:
Customer can return the item if purchased by mistake within 14 days of the customer’s order being received.

Change of mind returns will only be eligible for a refund on the product’s sale price within receiving the item'. Return postage is paid by the customer.

Warranty

Without prejudice and to the extent allowed by the Trade Practices Act 1974, The Australian Consumer Law and Competition and Consumer Act 2010, all hardware sold by MAD Electronics Australia is covered by one year limited warranty and is also backed by Australian manufacturer warranty. Where the manufacturer warranty period exceeds one year, we will advise the customer to contact the manufacturer directly for warranty support after the first year of purchase. Due to the nature of consumables products and software, they are not returnable or refundable items.

Any defective products purchased from MAD Electronics Australia and affiliates that fall within the warranty period provided will be covered, unless they fall within the following conditions:

· Physical Damage on the product not caused in the event during transit or Dead on Arrival (DOA) but caused due to mishandling, incorrect use of product for its purposes, improper installation of product, by accident, insect or vermin infestation, improper method or failure to maintain service and handle the item with reasonable care.

· The product has been modified using unauthorised methods. Any modifications on the product including physical and software modifications using third party unauthorised software such as third party firmware updates will void the warranty of products.
· The warranty seal or serial number of the item has been tampered with.
· The item has been serviced by another party other than madelectronics
· Consequential loss including but not limited to data, programs, software or other information stored on storage products, computer or laptop systems.
· Software

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
