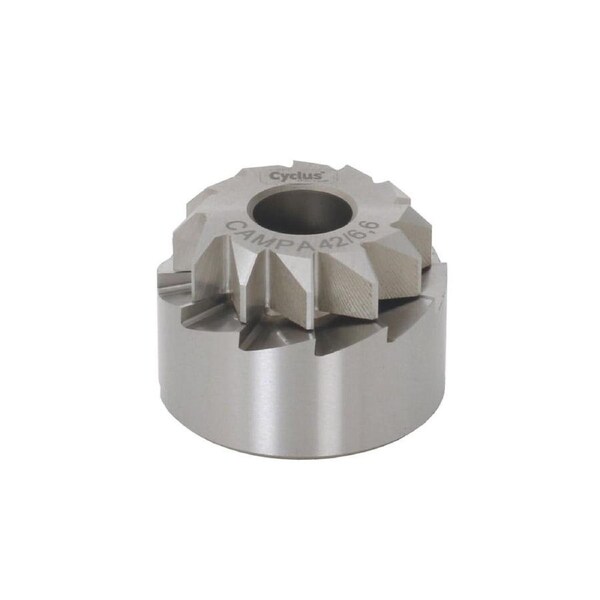

Cyclus Tools Head Tube Reamer IS 42/6.9/45° Spare Cutting Head
With the head tube reamer you can prepare head tubes with an inner diameter of 42 mm and a milling depth of 6.9 mm for the installation of an integrated headset. The angle of the bearing shell seats is 45°. The milling cutter allows you to create planar and coaxial shell seats in the head tube.
The individual milling cutters were named according to the new naming system S.H.I.S.: (Standardized Headset Identification System). consists of the type of headset and the associated inside diameter of the head tube e.g. EC 34:
EC (External Cup), ZS (Zero Stack) and IS (Integrated Standard).
Part Number: 720904
Barcode: 8590831220354
Product Code: CYC 720904
Items are shipped via express courier and are delivered within 1-6 Business days, to fixed home and business addresses. Orders to PO Boxes and Parcel Collect must be sent via standard Australia Post and can take longer than the time listed above.
We accept returns for new products within 30 days of purchase. Products must be in new condition with the tags and packaging intact. Returns are at the cost of the buyer, except for faults or errors from our end.
For defective products, please contact us as soon as possible.
Specs:
- Diameter: 42 mm
- Milling depth: 6.9 mm
- Milling angle: 45°
- One individual cutter
- For a complete tool you also need to order the holder for the head tube cutter (item number: 720211) and the cone guide (item no .: 720943).
- Always only turn in clockwise direction.
- Use suitable cutting oil when milling.
