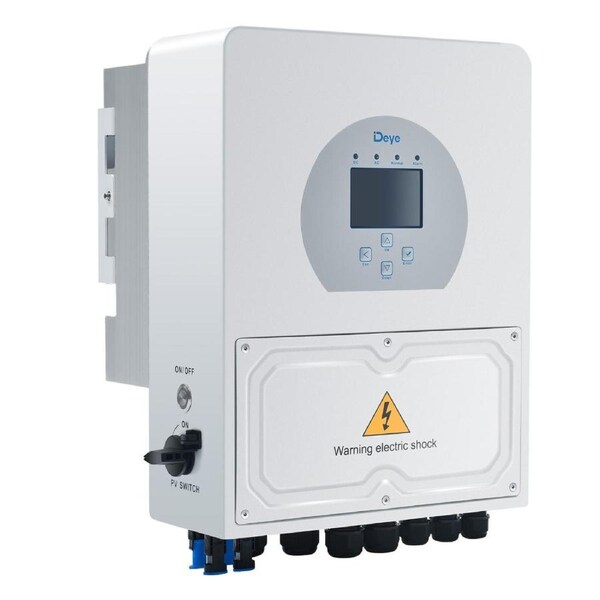

Deye 6KW Inverter MPPT Charger Regulator 6000W Hybrid Solar Inverter Off-Grid
The Deye 6kW Hybrid Inverter is a high-performance all-in-one power solution-combining inverter, solar charger, and battery charger in a single compact unit. Designed for off-grid, hybrid, or backup systems, this inverter keeps your home, farm, or business powered 24/7 with clean and reliable solar energy. Whether you're offsetting electricity costs or preparing for grid outages, this system ensures intelligent energy use and long-term energy independence.
Features
- 【All-in-One Power Hub】Combines solar inverter, MPPT charger, and battery management into one compact, wall-mountable unit-perfect for space-saving installations at home or on the farm.
- 【Smart Energy Scheduling】Customize up to 6 charging/discharging time periods to maximize solar usage and reduce peak grid demand, helping you save even more on energy bills.
- 【Reliable Backup Power】Instant 4ms switch to off-grid mode ensures uninterrupted operation of sensitive appliances like traditional fixed-frequency air conditioners during power cuts.
- 【Scalable and Versatile】Parallel up to 16 units and integrate easily with diesel generators, AC coupling, or retrofit existing PV systems. Compatible with both lithium-ion and lead-acid batteries.
- 【Durable and Weatherproof】Built to last with an IP65-rated enclosure and ultra-quiet <30dB operation. Backed by a 10-year warranty for complete peace of mind.
Specifications
- Quick Look
- Rated Output: 6KW
- Battery Voltage: 48V
- Max Efficiency: 97.6%
- Warranty: 10 Years
- Battery Input Data
- Battery Type: Lead-acid or Lithium-ion
- Battery Voltage Range (V): 40~60
- Max. Charging Current (A): 135
- Max. Discharging Current (A):135
- Charging Curve: 3 Stages / Equalization
- External Temperature Sensor:Yes
- Charging Strategy for Li-Ion Battery: Self-adaption to BMS
- PV String Input Data
- Max. DC Input Power (W):7800
- Rated PV Input Voltage (V):370 (100~500)
- Start-up Voltage (V):125
- MPPT Voltage Range (V):125-425
- Full Load DC Voltage Range (V):240-425
- PV Input Current (A):13+13
- Max. PV ISC (A): 17+17
- Number of MPPT / Strings per MPPT: 2/1+1
- AC Output Data
- Rated AC Output and UPS Power (VA): 6000
- Max. AC Output Power (W): 6000
- AC Output Rated Current (A):26.1
- Max. AC Current (A):26.1
- Grid Type: Single Phase
- DC injection current (mA):THD<3% (Linear load<1.5%)
- Efficiency:
- Max. Efficiency:97.60%
- Euro Efficiency:97.00%
- MPPT Efficiency: 99.90%
- General Data
- Operating Temperature Range (°C):-40~60°C, >45°C derating
- Cooling : Nature Cooling
- Noise (dB): <30 dB
- Communication with BMS:RS485; CAN
- Protection Degree: IP65
- Installation Style: Wall-mounted
- Warranty: 10 Years
- Dimensions & Weight
- Weight (kg):15.1
- Size (mm):330W x 433H x238D
- Package List
- 1 x 6KW Hybrid Inverter
- 1 x Wall Mounting Bracket
- 1 x Set of Stainless Steel Anti-collision Bolt M6 x60 x4
- 1 x Set of Stainless Steel Mounting Screws M4 x12 x2
- 1 x Parallel Communication Cable
- 1 x L-type Hexagon Wrench
- 1 x Wi-Fi Plug
- 1 x Battery Temperature Sensor
- 1 x Sensor Clamp
- 1 x User Manual
Reliable. Scalable. Smart. Whether you're optimizing your energy bills or preparing for grid instability, the Deye Hybrid Inverter is Experience next-level energy independence with the Deye Hybrid Inverter. Whether you're building an off-grid cabin or upgrading your home system, this is the smart, future-proof solution you've been waiting for.
