Enerdrive DC to DC Wiring Adaptor Inc Ignition Sensor Wire
Enerdrive DC to DC Wiring Adaptor Suits All Vehicles Inc Ignition Sensor Wire

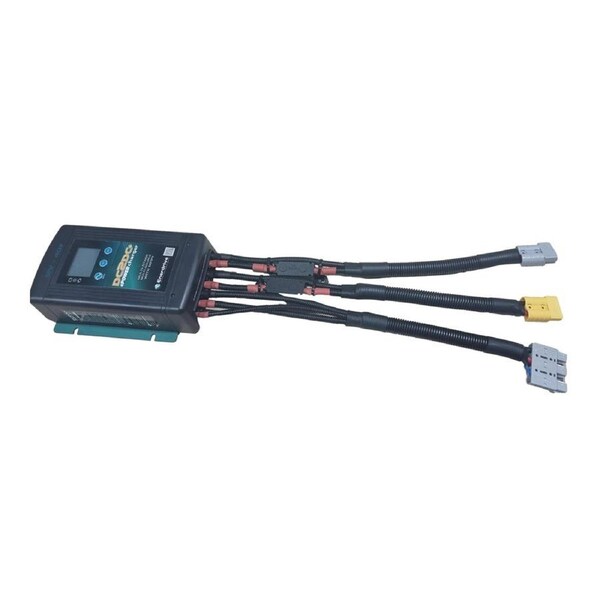

Enerdrive DC to DC Wiring Adaptor makes installing and wiring up your Enerdrive DC to DC much easier..
Each output and input is terminated with a 50 amp Anderson style plug to make joining to the main lead simple
The alternator input side utilises a 3 pin 50 amp Anderson style plug which incorporates the ignition sensing lead if required. An additional spare 3 pin 50 amp Anderson style plug is included to connect with the pre-wired plug. If the ignition sensing wire is not required, a normal 2 pin 50 amp Anderson plug will fit positive / negative side of the 3 pin plug.
The solar input uses a yellow 50 amp Anderson style plug to help avoid incorrect use and a spare yellow 50 amp Anderson plug is supplied..
The output from the Enerdrive DC to DC is terminated with a normal grey 50 amp Anderson style plug and a spare plug is included.
The solar and the output leads are both fused with 50 amp midi fuses, these can be changed to a different amperage midi fuse if required. The alternator input lead should be fused back at the main starter battery.
All cables are covered in corrugated split tube for added protection.
Main input and output cabling is 6 B&S, rated at 104 amps continuous use
Blue ignition sensing wire is 4mm, rated at 28 amps continuous use
Lengths can be adjusted if required
** Enerdrive DC to DC as shown in images is not included and there for illustration purposes only.
Enerdrive DC to DC Wiring Adaptor Inc Ignition Sensor Wire
Enerdrive DC to DC Wiring Adaptor Suits All Vehicles Inc Ignition Sensor Wire
Enerdrive DC to DC Wiring Adaptor makes installing and wiring up your Enerdrive DC to DC much easier..
Each output and input is terminated with a 50 amp Anderson style plug to make joining to the main lead simple
The alternator input side utilises a 3 pin 50 amp Anderson style plug which incorporates the ignition sensing lead if required. An additional spare 3 pin 50 amp Anderson style plug is included to connect with the pre-wired plug. If the ignition sensing wire is not required, a normal 2 pin 50 amp Anderson plug will fit positive / negative side of the 3 pin plug.
The solar input uses a yellow 50 amp Anderson style plug to help avoid incorrect use and a spare yellow 50 amp Anderson plug is supplied..
The output from the Enerdrive DC to DC is terminated with a normal grey 50 amp Anderson style plug and a spare plug is included.
The solar and the output leads are both fused with 50 amp midi fuses, these can be changed to a different amperage midi fuse if required. The alternator input lead should be fused back at the main starter battery.
All cables are covered in corrugated split tube for added protection.
Main input and output cabling is 6 B&S, rated at 104 amps continuous use
Blue ignition sensing wire is 4mm, rated at 28 amps continuous use
Lengths can be adjusted if required
** Enerdrive DC to DC as shown in images is not included and there for illustration purposes only.
Enerdrive DC to DC Wiring Adaptor Inc Ignition Sensor Wire
Designed and assembled in Brisbane at our shop location in Caboolture South
Enerdrive DC to DC Wiring Adaptor has a 12 month manufacturers warranty
Please contact use if you require any changes to be made to the Enerdrive DC to DC Wiring Adaptor
The main lead from the starter battery to this adaptor is also available if needed.
