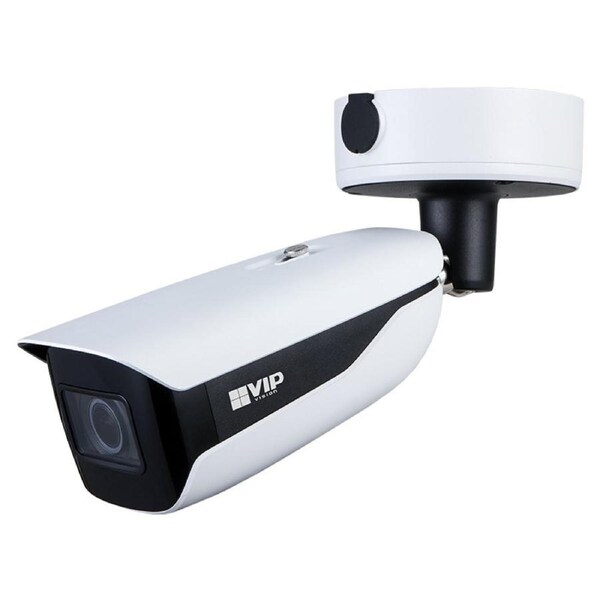

Ultimate AI Series 8.0MP Motorised Bullet

Applying a deep learning algorithm, the VSIPU-4BIRM-I detects and captures both faces and vehicles to use in face recognition, intelligent searching and perimeter protection, all while delivering superb image performance with low light colour and automatic image adjustment.

Camera features:
* Stream up to 8.0MP (3840 x 2160) at 25fps
* 2.7 ~ 12mm motorised lens with 114 ~ 47o viewing angles
* H.265 encoding for efficient storage & streaming
* Up to 60m infrared range; true day/night (auto ICR)
* MicroSD slot for recording at the edge up to 256GB
* Up to 10 channels of face recognition with an AI NVR
* Detect faces and receive face alerts in real time
* Search footage by face image or by facial attributes
* Set up AI powered tripwire & intrusion rules, receive alerts and search footage by people or vehicles
* Extend PoE up to 800m (requires ePoE NVR/switch)

Specifications

Camera Image Sensor 1/1.8'' 8.0MP Progressive Scan CMOS Effective Pixels 3840 (H) x 2160 (V) RAM / ROM 2GB / 4GB Min Illumination 0.003 Lux / F1.2 (Color) S/N Ratio > 50dB Infrared System 4 x Infrared LED, 60m range, Auto/manual on/off control Lens Lens / Iris 2.7 ~ 12.0mm F1.2 Motorised Varifocal Lens with Auto Iris Field of View Horizontal: 114o~47o, Vertical: 59o~27o Focus Auto Focus / 1.2m Min. Focus Distance DORI Detect (25px/m) 87m (wide) / 187m (tele) Observe (63px/m) 35m (wide) / 75m (tele) Recognise (125px/m) 17m (wide) / 37m (tele) Identify (250px/m) 9m (wide) / 19m (tele) Video Resolution 8.0MP (3840 x 2160) to CIF (352 x 288) Frame Rate (Main) 8.0MP (1 ~ 25fps) Frame Rate (Sub) 704 x 576 (1 ~ 25fps) Frame Rate (Third) 1080p (1 ~ 25fps) Video Compression H.265, H.264, H.264B, H.264H, MJPEG Bit Rate H.264: 32Kbps ~ 16384Kbps / H.265: 12Kbps ~ 16384Kbps Bit Rate Control Constant bit rate (CBR) / Variable bit rate (VBR) Day/Night Auto (ICR) / Color / B&W Lighting Compensation BLC / HLC / WDR (120dB) White Balance Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom Gain Control Auto / Manual Noise Reduction 3D DNR Picture Control Mirror / Flip (0o, 90o, 180o, 270o) (8.0MP supports 90o & 270o at 1080p resolution) IVS Intelligent Functions Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Abandoned Object, Moving Object Perimeter Protection Tripwire, Intrusion (Human/Vehicle Recognition), Fast Movement Detection, Loitering Detection, Parking and Gathering Detection Face Detection Face image recognition and detection up to 10 channels with AI NVR Face Attributes Age, gender, expression, glasses, mouth mask and facial hair People Counting Supports line crossing/region/queuing people counting. 4 independent access detection / 4 dependent access detection Heat Map N/A Event Trigger N/A Intelligent Search With a smart NVR intelligent search. Search tripwire / intrusion events by people or vehicle. Or search footage by face image and face attributes Network Ethernet RJ-45 (10/100Base-T) Protocol HTTP; Https; 8021.x; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP; QoS; UPnP; NTP; SFTP; RTMP; Genetec; Bonjour Streaming Method Unicast / Multicast Max. User Access 20 Users Interface Video Interface N/A Audio Interface 1 input (RCA Port) / 1 output (RAC Port) / Audio Compression: G.711a; G.711Mu; G726; G.723 Alarm Interface 3 channel in: 5mA 5VDC / 2 channel out: 1000mA 30VDC / 500mA 50VDC RS485 1 (Bit rate: 1200bps ~ 115200bps) Edge Storage MicroSD Card (up to 256GB) / NAS / FTP /SFTP Interoperability ONVIF / P2P / CGI / Milestone / Genetec Environmental Power Supply 12VDC / 24VAC / PoE (802.3af) (Class 4) Power Consumption <17.3W Operating Conditions -40oC ~ +60oC, 95% RH Ingress Protection IP67 Vandal Resistance IK10 Housing Metal, Plastic Pan/Tilt/Rotation Pan: 0o ~ 360o, Tilt: 0o ~ 90o, Rotation: 0o ~ 360o Dimensions 340mm x 109mm x 93mm Net Weight 1.60kg Other Series Ultimate AI Series Cameras Warranty (Years) 4
