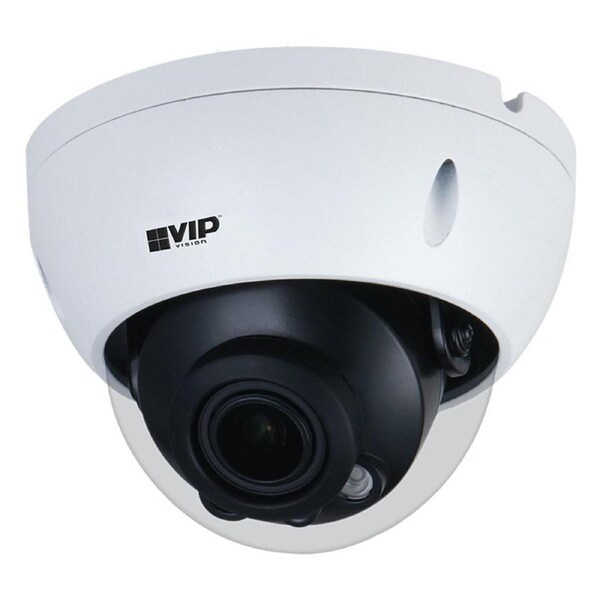

Professional AI Series 4.0MP Motorised Vandal Dome

Featuring intelligent perimeter protection, the VSIPP-4DIRMD-I identifies people & vehicles during motion detection to filter out false alarms, providing reliable real-time alerts and analytics. Achieving high quality video evidence with colour in low light & true WDR, the series excels at outdoors motion detection applications.

Camera features:
* Stream up to 4.0MP (2688 x 1520) at 20fps
* 2.7 ~ 13.5mm motorised lens with 104 ~ 27o viewing angles
* H.265 encoding for efficient storage & streaming
* Up to 40m infrared range; true day/night (auto ICR)
* MicroSD slot for recording at the edge up to 256GB
* AI powered perimeter protection video analytics
* Set up AI powered tripwire & intrusion rules, receive alerts and search footage by people or vehicles
* Back/highlight compensation & true WDR (120dB)
* 3D digital noise reduction & auto white balance
* IP67 weather rated housing for outdoor use
* IK10 vandal resistant metal housing

Specifications

Camera Image Sensor 1/3'' 4.0MP Progressive Scan CMOS Effective Pixels 2688 (H) x 1520 (V) RAM / ROM 128MB / 128MB Min Illumination 0.008 Lux/F1.5 (Color) S/N Ratio > 50dB Infrared System 2 x Infrared LED, 40m range, Auto/manual on/off control Lens Lens / Iris 2.7 ~ 13.5mm F1.5 Motorised Varifocal Lens with Fixed Iris Field of View Horizontal: 104o~27o, Vertical: 55o~15o (5x Optical Zoom) Focus Auto Focus / 0.8m Min. Focus Distance DORI Detect (25px/m) 64m (wide) / 220m (tele) Observe (63px/m) 26m (wide) / 88m (tele) Recognise (125px/m) 13m (wide) / 44m (tele) Identify (250px/m) 6m (wide) / 22m (tele) Video Resolution 4.0MP (2688 x 1520) to CIF (352 x 288) Frame Rate (Main) 4.0MP (1 ~ 20fps) / 3.0MP (1 ~ 25fps) Frame Rate (Sub) D1 (1 ~ 25fps) Frame Rate (Third) N/A Video Compression H.265 / H.264 / H.264B / MJPEG Bit Rate H.265: 12 ~ 6144Kbps / H.264: 32 ~ 6144Kbps Bit Rate Control Constant bit rate (CBR) / Variable bit rate (VBR) Day/Night Auto (ICR) / Color / B&W Lighting Compensation BLC / HLC / WDR (120dB) White Balance Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom Gain Control Auto / Manual Noise Reduction 3D DNR Picture Control Mirror / Flip (0o, 90o, 180o, 270o) IVS Intelligent Functions Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared Perimeter Protection Tripwire, Intrusion (recognition of human or vehicle) Face Detection With a smart NVR intelligent search. Search tripwire/ intrusion events by people or vehicle. Face Attributes RJ-45 (10/100Base-T) People Counting N/A Heat Map N/A Event Trigger N/A Intelligent Search With a smart NVR intelligent search. Search tripwire/ intrusion events by people or vehicle. Network Ethernet RJ-45 (10/100Base-T) Protocol IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour Streaming Method Unicast / Multicast Max. User Access 20 Users Interface Video Interface N/A Audio Interface 1 input (RCA Port) / 1 output (RAC Port) / Audio Compression - G.711a; G.711Mu; G726; AAC Alarm Interface 1 channel in: 5mA 5VDC/ 1 channel out: 300mA 12VDC RS485 N/A Edge Storage MicroSD Card (up to 256GB) / NAS Interoperability ONVIF / P2P / CGI / Milestone / Genetec Environmental Power Supply 12VDC / PoE (802.3af) Power Consumption <6.5W Operating Conditions -30oC ~ +60oC / 95% RH Ingress Protection IP67 Vandal Resistance IK10 Housing Metal Pan/Tilt/Rotation Pan: 0o ~ 355o, Tilt: 0o ~ 75o, Rotation: 0o ~ 355o Dimensions O122mm x 89mm Net Weight 0.47kg Other Series Professional AI Series Cameras Warranty (Years) 4
