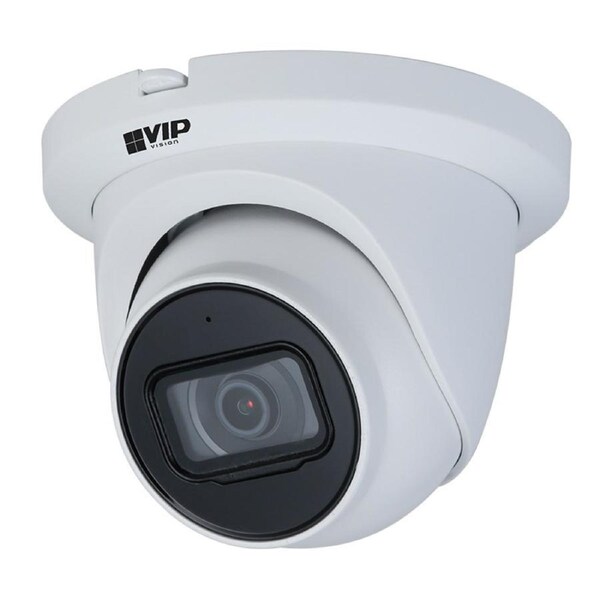

Professional AI Series 4.0MP Fixed Turret Dome

Featuring intelligent perimeter protection, the VSIPP-4DIRG-I identifies people & vehicles during motion detection to filter out false alarms, providing reliable real-time alerts and analytics. Achieving high quality video evidence with colour in low light & true WDR, the series excels at outdoors motion detection applications.

Camera features:
* Stream up to 4.0MP (2688 x 1520) at 25fps
* 2.8mm fixed lens with 103o viewing angle
* H.265 encoding for efficient storage & streaming
* Up to 50m infrared range; true day/night (auto ICR)
* MicroSD slot for recording at the edge up to 256GB
* AI powered perimeter protection video analytics
* Set up AI powered tripwire & intrusion rules, receive alerts and search footage by people or vehicles
* Back/highlight compensation & true WDR (120dB)
* 3D digital noise reduction & auto white balance
* IP67 weather rated housing for outdoor use

Specifications

Camera Image Sensor 1/3'' 4.0MP Progressive Scan CMOS Effective Pixels 2688 (H) x 1520 (V) RAM / ROM 512MB / 128MB Min Illumination 0.005 Lux/F1.5 (Color) S/N Ratio > 50dB Infrared System 2 x Infrared LED, 50m range, Auto/manual on/off control Lens Lens / Iris 2.8mm Fixed Focal Lens with Fixed Iris Field of View Horizontal: 103o, Vertical: 55o Focus Auto Focus / 0.9m Min. Focus Distance DORI Detect (25px/m) 56m Observe (63px/m) 22m Recognise (125px/m) 11m Identify (250px/m) 6m Video Resolution 4.0MP (2688 x 1520) to CIF (352 x 288) Frame Rate (Main) 4.0MP (1 ~ 25fps) Frame Rate (Sub) D1 (1 ~ 25fps) Frame Rate (Third) 720p (1 ~ 25fps) Video Compression H.265 / H.264 / H.264B / MJPEG Bit Rate H.265: 12 ~ 6144Kbps / H.264: 32 ~ 6144Kbps Bit Rate Control Constant bit rate (CBR) / Variable bit rate (VBR) Day/Night Auto (ICR) / Color / B&W Lighting Compensation BLC / HLC / WDR (120dB) White Balance Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom Gain Control Auto / Manual Noise Reduction 3D DNR Picture Control Mirror / Flip (0o, 90o, 180o, 270o) (Support 90o/270o with 2.0MP resolution) IVS Intelligent Functions Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared Perimeter Protection Tripwire, Intrusion (recognition of human or vehicle) Face Detection N/A Face Attributes N/A People Counting N/A Heat Map N/A Event Trigger N/A Intelligent Search Search tripwire / intrusion events by people or vehicle (requires AI NVR) Network Ethernet RJ-45 (10/100Base-T) Protocol IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP Streaming Method Unicast / Multicast Max. User Access 20 Users Interface Video Interface N/A Audio Interface Built-in Mic / Audio Compression - G.711a; G.711Mu; G726; AAC Alarm Interface N/A RS485 N/A Edge Storage MicroSD Card (up to 256GB) / NAS Interoperability ONVIF / P2P / CGI / Milestone / Genetec Environmental Power Supply 12VDC / PoE (802.3af) Power Consumption <6.5W Operating Conditions -40oC ~ +60oC / 95% RH Ingress Protection IP67 Vandal Resistance N/A Housing Metal Pan/Tilt/Rotation Pan: 0o ~ 360o, Tilt: 0o ~ 78o, Rotation: 0o ~ 360o Dimensions O122mm x 99mm Net Weight 0.48kg Other Series Professional AI Series Cameras Warranty (Years) 4
