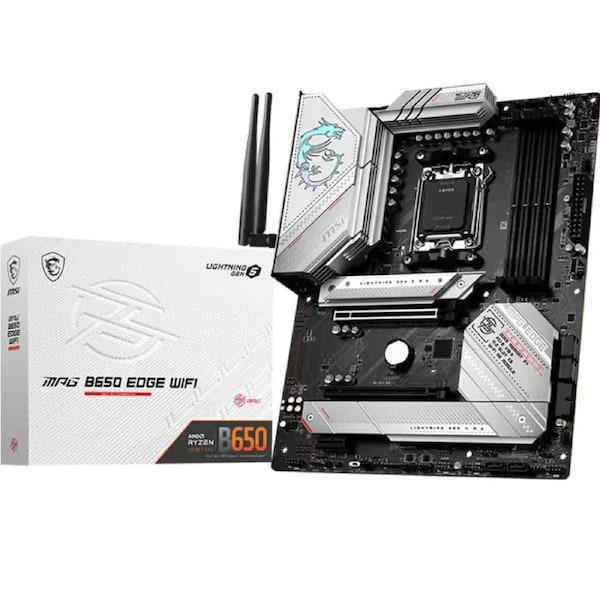

MSI MPG B650 Edge WiFi AM5 ATX Motherboard
CHIPSET AMD B650
CPU SUPPORT Supports AMD Ryzen™ 7000 Series Desktop Processors
Socket AM5
MEMORY 4x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6600+(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max. speed up to 6600+ MHz
• 1DPC 2R Max. speed up to 6000+ MHz
• 2DPC 1R Max. speed up to 6400+ MHz
• 2DPC 2R Max. speed up to 4000+ MHz
Supports non-ECC, un-buffered memory
Supports AMD EXPO™
ONBOARD GRAPHICS 1x HDMI™
1x DisplayPort
Support HDMI™ 2.1 FRL, maximum resolution of 4K 60Hz*
Support DP 1.4, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 4.0 supports up to x2 (From Chipset)
PCI_E3 PCIe 3.0 supports up to x1 (From Chipset)
STORAGE 3x M.2 slot
M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G port
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
* SATA_A1~A2 do not support RAID function.
USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Realtek® RTL8125BG 2.5Gbps LAN
