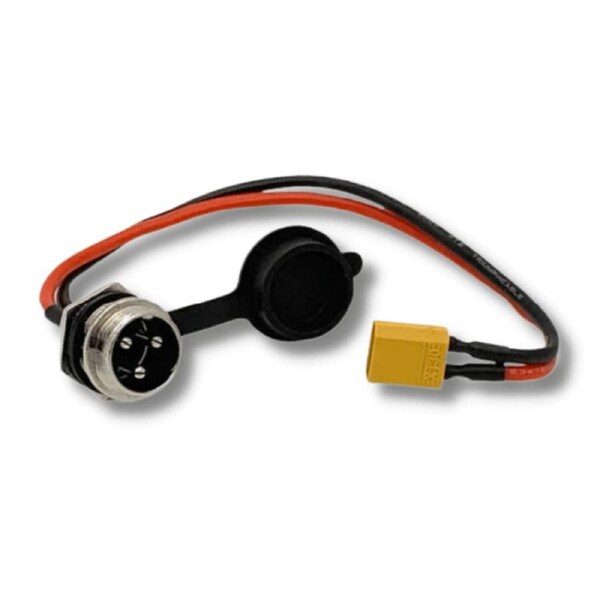

ZERO Charging Port
Introducing the ZERO Charging Port - the perfect replacement for your old and worn-out charging port. This GX-16 charging port is specially designed for Zero electric scooters.
Made with high-quality materials, this charging port features a model GX-16 with 3 pinouts, with only Pin 1 and 3 used, while Pin 2 is N/C. The Pin 1 is the positive terminal (red), and Pin 3 is the ground terminal (black). It can handle up to 8A of charging current, which makes it perfect for regular charging needs.
However, it's important to note that it cannot handle fast chargers of more than 6A.
The installation and adjustment of this charging port require a high hands-on ability.
Before you replace it, make sure you turn off the power and unplug the plug connecting with the battery.
If you don't know how to install it, please ask for a mechanic in your local store.
Also, do not use a metal tool such as a screwdriver to touch both 2 charging pins at the same time before you unplug the plug connecting with the battery. It's very dangerous, and it could cause a short circuit and damage your scooter, even cause a fire disaster.
Do not use the charging port with the metal caps. They will cause short circuits and your charging ports to spark!
Make sure all the screws are tightened before your riding, and always use the rubber cap to plug the charging port after you finish charging.
