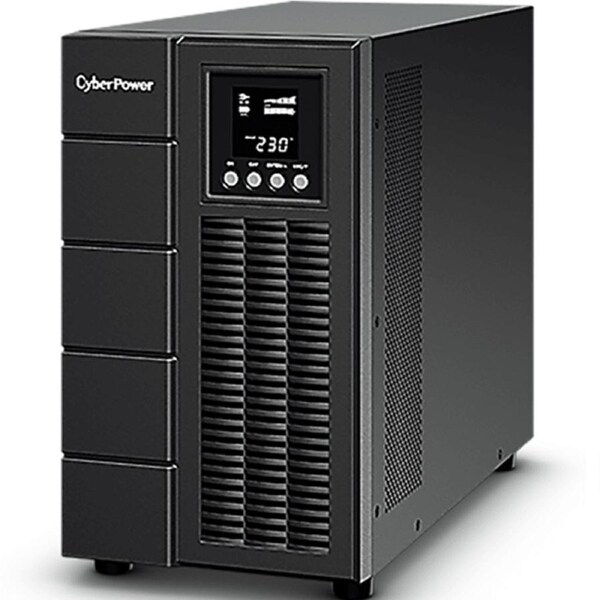

CyberPower OLS2000E is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It's typically integrated in the back office, server room, and data center environment.
- Online (Double Conversion) UPS Topology
- Generator Compatible
- Zero Transfer Time
- Extended Battery Module (EBM)
- EMI and RFI Filtration
- LCD Status Display
- PowerPanel® Management Software
- ECO Mode
- Overload Protection
- Smart Battery Management (SBM)
- Surge and Spike Protection
- Phone/Fax/Modem/DSL/Network Protection
- Emergency Power Off (EPO) Port
- SNMP/HTTP Remote Management Capability (Optional)
Phase Single Phase
Form Factor Tower
UPS Topology Online Double Conversion
Energy Saving Technology Online ECO Mode Efficiency > 95%
Active PFC Compatibility Yes
Input
Generator Compatibility Yes
Nominal Input Voltage ( Vac ) 230 ± 10%
Input Voltage Range ( Vac ) 160 ~ 300
Adjustable Voltage Range ( Vac ) 0~50% Load for 110 ~ 300 Vac
- 0~60% Load for 120 ~ 300 Vac
- 0~80% Load for 140 ~ 300 Vac
- 0~100% Load for 160 ~ 300 Vac
Input Frequency ( Hz ) 50 ± 10
Input Frequency Detection Auto-sensing
Rated Input Current ( A ) 9
Input Power Factor 98
Input Connector Type IEC C20
Detachable Power Cord Plug Type AU x 1
Power Cord Length (ft.) 9
Power Cord Length (m.) 8
Output
Capacity (VA) 2000
Capacity (Watts) 1800
On Battery Waveform Pure Sine Wave
On Battery Voltage(s) ( Vac ) 208 ± 1%
- 220 ± 1%
- 230 ± 1%
- 240 ± 1%
Output Voltage Setting Configurable
On Battery Frequency ( Hz ) 50 ± 0.5%
Output Frequency Setting Configurable
Power Factor 9
ECO Mode Voltage Tolerance ± 15 %
Overload Protection Internal Current Limiting, Circuit Breaker, Fuse
Overload Protection (Line Mode) 110~120% Load for 1 min, >120% Load Immediately
Overload Protection (Battery Mode) 110~120% Load for 10 sec, >120% Load Immediately
Overload Protection (Bypass Mode) >130% Load Immediately
Crest Factor 3 : 1
Harmonic Distortion (Linear Load) THD＜3%
Harmonic Distortion (Non-linear Load) THD＜5%
Internal Bypass Automatic Bypass, Manual Bypass
Outlet(s) - Total 5
Outlet Type Hardwire Terminal Block x 1
Outlet(s) - Battery & Surge Protected 4
Typical Transfer Time ( ms ) 0
Battery
Runtime at Half Load ( min ) 15
Runtime at Full Load ( min ) 5
Typical Recharge Time ( Hours ) 5
Maximum Charging Current ( A ) 1
Start On Battery Yes
Smart Battery Management (SBM) Yes
User-replaceable No
Battery Type Sealed Lead-acid
Single Battery Capacity ( AH ) 12 V 7 AH
Compatible Extended Battery Module (EBM) BPSE72V45A
EBM Quantity ( pcs ) 3
Surge Protection & Filtering
Surge Suppression ( Joules ) 440
EMI/RFI Filtration Yes
Phone/Network Protection RJ11/RJ45 (Combo) 1-in, 1-out
Management & Communications
LCD Panel Yes
LCD Information Display Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
LCD Setting & Control Mode Setting, Alarm Setting, Input & Output, Battery Setting
HID Compliant USB Port(s) 1
Emergency Power Off (EPO) Port Yes
Audible Alarms Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery
Management Cable ( pcs ) Power Cord x2, USB Cable x1, Phone Line x1
Power Management Software PowerPanel® Business (Recommended)
SNMP/HTTP Remote Monitoring Yes - with optional RMCARD205
Physical
Enclosure Construction Metal
Color Black
Physical Size - UPS Module
Dimensions (WxHxD) (in.) 72 x 12.27 x 16.38
Dimensions (WxHxD) (mm.) 196 x 337 x 416
Weight (lbs.) 47
Weight (kg.) 8
Shipping Dimensions
Dimensions (WxHxD) (in.) 61 x 18.03 x 20.43
Dimensions (WxHxD) (mm.) 295 x 458 x 519
Weight (lbs.) 32
Weight (kg.) 26
Environmental
Operating Temperature (°F) 32 ~ 104
Operating Temperature (°C) 0 ~ 40
Operating Relative Humidity (Non-condensing) ( % ) 20 ~ 90
Operating Elevation ( feet/meters ) 0-5,000 feet (0-1,500 meters)
Storage Temperature (°F) -4 ~ 122
Storage Temperature (°C) -20 ~ 50
Storage Relative Humidity (Non-condensing) ( % ) 10 ~ 90
Storage Elevation ( feet/meters ) 0-5,000 feet (0-1,500 meters)
Online Thermal Dissipation ( BTU/hr ) 666
Audible Noise at 1.5M from Surface of Unit ( dBA ) 45
Certifications
Certifications CE, RCM
RoHS Yes
