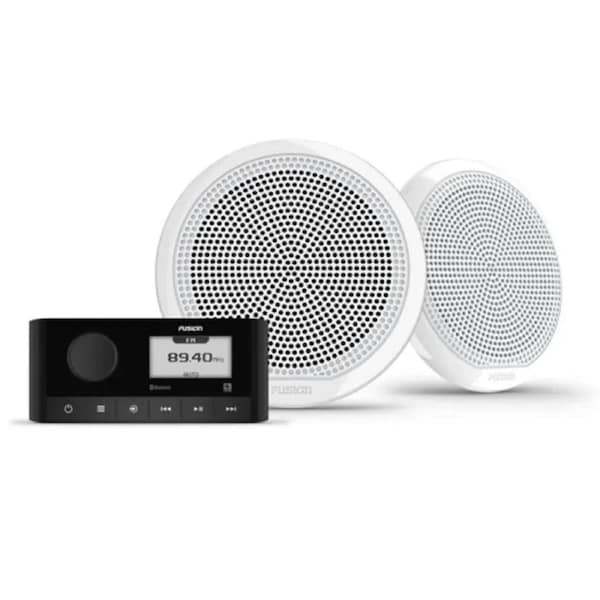

Fusion MS-RA60 Marine Stereo and EL Classic Speakers Bundle - White

• Physical dimensions (HxWxD)
  • MS-RA60: 2.68" x 6.18" x 4.06" (68 x 156.9 x 103.2 mm)
  • MS-RA210: 2.68" x 6.18" x 4.99" (68 x 157 x 126.6 mm)
• Weight
  • MS-RA60: 11.1 oz (316 g)
  • MS-RA210: 12.4 oz (350 g)
• Water rating: IPX6 and IPX7 (front panel only, when properly installed)
• Power input: 10.8-16 VDC
• Operating temperature range: 32° to 122° F (0° to 50° C)
• Current (max.): 15 A
• NMEA 2000® LEN: MS-RA210: 1 (50 mA)
• Bluetooth® wireless range: Up to 30 ft (10 metres)
• ANT wireless range: Up to 10 ft (3 metres)
• Wireless frequencies/protocols:
  • Bluetooth 2.4 GHz @ +12 dBm nominal
  • ANT 2.4 GHz @ +7 dBm nominal
• Compass-safe distance: 5.9" (150 mm)
• Display:
  • MS-RA60: 2.3" perimeter bonded monochrome dot matrix LCD
  • MS-RA210: 2.7" optically bonded colour LCD
• Built-in amplifier: Class-D (minimum 4 Ohm impedance)
• Peak power:
  • MS-RA210: 200 W
  • MS-RA60: 180 W
• Rated power output (4 Ohm):
  • MS-RA60: 22 W rms x 4 @ 14.4 V input < 10% THD
  • MS-RA210: 26 W rms x 4 @ 14.4 V input < 10% THD
• Fusion-Link™ control:
  • MS-RA60: Yes (with smartphone and Garmin watch)
  • MS-RA210: Yes (with MFD, smartphone and Garmin watch)
• Built-in Digital Signal Processing: MS-RA210: Yes (with preconfigured DSP profiles)
• Multi-Zone™ technology: 2 zones
• Bluetooth wireless technology: Yes
• ANT wireless technology: Yes
• DAB+ ready:
  • MS-RA60: Yes (DAB tuner built in)
  • MS-RA210: Yes (requires DAB100A antenna module)
• SiriusXM-ready: MS-RA210: Yes (requires SiriusXM Connect vehicle tuner)
• Multi-language interface:
  • MS-RA60: Dutch, English, French, German, Italian, Spanish
  • MS-RA210: Bulgarian, Chinese (Simplified/Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (BR/PT), Slovenian, Spanish, Swedish, Thai, Turkish
• NRX remote compatibility: MS-RA210: yes
• Software updates:
  • MS-RA60: Over-the-air software updates via Bluetooth wireless technology using the Fusion-Link app
  • MS-RA210: USB
• Warranty: 1 year
• Sources:
  • MS-RA60: AM/FM/Bluetooth/AUX x1/DAB+ (available in Europe and Australia only)
  • MS-RA210: AM/FM/Bluetooth/USB

• Physical dimensions (HxWxD):
  • EL Classic Speaker: 6.93" x 2.26" (176 x 57.5 mm)
  • EL Sports Speaker: 6.93" x 2.32" (176 x 59 mm)
  • XS Classic Speaker: 6.97" x 3.19" (177 x 81 mm)
  • XS Sports Speaker: 6.97" x 3.27" (177 x 83 mm)
• Water rating: IP65
• Configuration:
  • EL Speaker: Full range
  • XS Speaker: Coaxial
• Speaker size: 6.5"
• Peak power (Watts):
  • EL Speaker: 80 W
  • XS Speaker: 200 W
• RMS power (Watts):
  • EL Speaker: 20 W
  • XS Speaker: 50 W
• Sensitivity (1 watt/1 metre):
  • EL Speaker: 88 dB
  • XS Speaker: 91 dB
• Frequency response:
  • EL Speaker: 45 Hz-16 kHz
  • XS Speaker: 80 Hz-18 kHz
• Nominal impedance: 4 ohm
• Recommended amplifier power (RMS):
  • EL Speaker: 20-40 W/Ch
  • XS Speaker: 20-150 W/Ch
• Operating temperature range: 32° to 122° F (0° to 50° C)
• Voice coil diameter:
  • EL Speaker: 0.79"
  • XS Speaker: 1.18"
• Cone material: Polypropylene cone with cloth surround
• Tweeter type: XS Speaker - Aluminium dome
• Compass-safe distance:
  • EL Speaker: 100" (254 cm)
  • XS Speaker: 122" (310 cm)
• Warranty:
  • EL Speaker: 1 year
  • XS Speaker: 3 years
• Mounting diameter clearance:
  • EL Speaker: 5.12" (130 mm)
  • XS Speaker: 5.31" (135 mm)
• Mounting depth clearance:
  • EL Speaker: 1.69" (43 mm)
  • XS Speaker: 2.64" (67 mm)
• Sealed enclosure volume: XS Speaker - 0.28 cubic ft (8 L)
