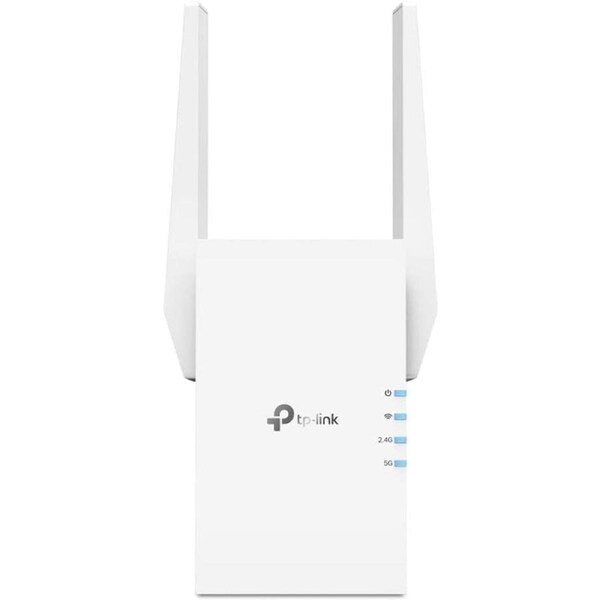

TP-link RE705X AX3000 Mesh WiFi 6 Range Extender

Tp-Link RE705XAX3000 Mesh WiFi 6 Extender

• Dual Band WiFi 6 - Separates 5 GHz (2402 Mbps) and 2.4 GHz (574 Mbps) WiFi bands for faster speeds and greater capacity with the latest technology
• Uninterrupted Streaming - Easily create a TP-Link OneMesh network for seamless whole home WiFi coverage
• AP Mode - Create a new WiFi access point through the Gigabit Ethernet port to enhance your wired network with WiFi capability
• Gigabit Ethernet Port - Provides high-speed wired access, ideal for smart TVs, PCs, and game consoles
• App Control - Easy Setup and management with your network using the TP-Link Tether app
• Cover Every Corner with

Life in the fast lane with advanced WiFi6
WiFi 6 comes with it all: faster speeds, lower latency, and more connections. It also features 25% faster data throughput compared with last-gen WiFi thanks to 1024-QAM. With this speed boost, experience high-speed and stable WiFi throughout your rooms.

Higher Efficiency, Lower Latency
Supports 2x2 160MHz on the 5G band, and enjoys wider bandwidth and faster speed than the traditional 80MHz.

4 high-performance amplifiers, we got you covered
Enjoy 4K streaming and gaming in whatever room youre in thanks to RE705Xs 4 high-performance amplifiers. Whether youre sharing a pad with friends or living in your forever home, RE705X sends strong signals to those hard-to-cover areas.

More efficient data.
Orthogonal Frequency Division Multiple Access helps integrate the data of different end devices for higher efficiency.

Beamforming
Strong, targeted WiFi.
Find the direction of your phone or laptop, and accelerate your signal strength.

Adaptive Path Selection
Keeps your network running at top speed by automatically choosing the fastest connection path to the router.

OneMesh
Roaming Redefined
Stop searching around for full bars. OneMesh is a simple way to form a Mesh network with a single WiFi name for seamless whole-home coverage. Just connect RE705X to an OneMesh router.

Built-In
Access Point Mode
RE705X is more than a wireless range extender. Simply plug an Ethernet cable into its Ethernet port, and easily turn your wired internet connection into a 2-2 MU-MIMO dual-band wireless access point.

Control at Your Fingertips
Set up and manage your WiFi through the TP-Link Tether app from your phone (Android, iOS), including TP-Link routers and range extenders.

Technicical Specification:

Working Modes : Range Extender / Access Point
HARDWARE FEATURES

• Ports: 1 Gigabit Ethernet Port
• Button: WPS Button, Reset Button
• Input Power: 100-240V~50/60Hz
• Power Consumption: 12.6W
• Dimensions ( W x D x H ): 97*46*158
• Antenna: 2 External Antennas

WIRELESS FEATURES
Wireless Standards: IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/ax 2.4GHz
Frequency: 2.4GHz and 5GHz
Signal Rate: 574 Mbps at 2.4GHz, 2402 Mbps at 5GHz
Reception Sensitivity
5GHz:

• 11a 6Mbps:-97dBm
• 11a 54Mbps:-78dBm
• 11ax HE20 MCS0: -97dBm
• 11ax HE20 MCS11: -66dBm
• 11ax HE40 MCS0: -94dBm
• 11ax HE40 MCS11: -62dBm
• 11ax HE80 MCS0: -91dBm
• 11ax HE80 MCS11: -61dBm
• 11ax HE160 MCS11: -59dBm

2.4GHz:

• 11g 6Mbps:-96dBm
• 11g 54Mbps:-78dBm
• 11ax HE20 MCS0: -95dBm
• 11ax HE20 MCS11: -66dBm
• 11ax HE40 MCS0: -93dBm
• 11ax HE40 MCS11: -62dBm

Wireless Functions:

• Enable/Disable Wireless Radio
• DFS (the latest firmware and hardware version is required)
• Access Control
• LED Control
• Power Schedule
• Wi-Fi Coverage

Wireless Security: WEP, WPA, WPA2, WPA3
Transmission Power: CE: 2.4GHz ‰¤16dBm, 5GHz ‰¤21dBm
