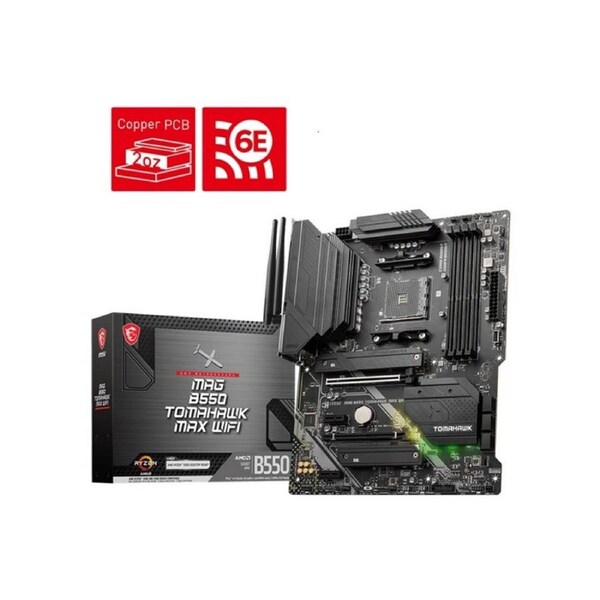

MSI MAG B550 TOMAHAWK MAX WIFI AM4 M.2 HDMI WiFi 6E ATX Gaming Motherboard

MSI MAG B550 TOMAHAWK MAX WIFI AM4 ATX MB 4xDDR4-128G 2xPCIEx16 2xPCIEx1 2xM.2 6xSATAIII 1xUSB3.2 2xUSB2.0

MSI MAG B550 TOMAHAWK MAX WIFI AMD AM4 DDR4 Lightning Gen 4 M.2 HDMI WiFi6E ATX Gaming Motherboard

• Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors
• Supports DDR4 Memory, up to 5100+(OC) MHz
• Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
• Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
• Enhanced Power Design: 10+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
• 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
• Pre-installed I/O Shield: Better EMI protection and more convenience for installation.
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
• Multi-GPU: With Steel Armor PCI-E slots. Supports AMD Crossfire™

• Processor :

  Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors

  See supported processors from MSI Official Site

• Chipset :

  AMD B550 Chipset

• Memory :
  • 4 x DDR4 memory slots, support up to 128GB 1
    • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
    • Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866/ 5000/ 5100+ MHz by A-XMP OC MODE
      • 1DPC 1R max speed 5100 MHZ
      • 1DPC 2R max speed 3866 MHZ
      • 2DPC 1R max speed 4000 MHZ
      • 2DPC 2R max speed 3600 MHZ
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory
  • Supports un-buffered memory
  1. Please refer MSI Official Site for more information on compatible memory.

  See supported memory from MSI Official Site

• Expansion Slot :
  • 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1
  • 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2
  • 2x PCIe 3.0 x1 slots
  1. The supported specification depends on installed processor.
  2. When installing devices in M.2_2, PCI_E2 & PCI_E3 slots at the same time, PCI_E3 slot will be unavailable, and M2_2 slot only supports PCIe x2.
• Multi-GPU :
  • Supports AMD CrossFire™ Technology
• Onboard Graphics :
  • 1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 2
    Support HDCP 1.4 & 2.3
  • 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1
  • Maximum shared memory of 16 GB
  1. Available for the processor with integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.
• Storage :

  AMD B550 Chipset

  • 6x SATA 6Gb/s ports
  • 2x M.2 slots (Key M)
    • M2_1 slot (from AMD Processor)
      • Supports PCIe 4.0/ 3.0 x4 1
      • Supports SATA 6Gb/s
      • Supports 2242/ 2260/ 2280/ 22110 storage devices
    • M2_2 slot (from AMD B550 chipset)
      • Supports PCIe 3.0x4
      • Supports 2242/ 2260/ 2280 storage devices
  1. The supported specification depends on installed processor.
• RAID :
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
• USB :

  AMD B550 Chipset

  • 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

  AMD Processor

  • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
  • 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
• Audio :Realtek® ALC897 Codec
  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
• LAN :
  • 1x Realtek® RTL8125B 2.5Gbps LAN controller
• WIRELESS LAN & BLUETOOTH :
  • AMD Wi-Fi 6E
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.2 2, FIPS, FISMA
  1. Wi-Fi 6E 6GHz may depend on every country's regulations and will be ready in Windows 10 build 21H1 and Windows 11.
  2. Bluetooth® 5.2 will be ready in Windows 10 build 21H1 and Windows 11.
• Internal connectors :
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 6x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 2x 4-pin RGB LED connectors
  • 2x 3-pin RAINBOW LED connectors
  • 1x TPM module connector
  • 1x Clear CMOS jumper
• Back panel ports :
  1. Keyboard / Mouse
  2. DisplayPort 1.4
  3. 2.5G LAN Port
  4. USB 3.2 Gen 2 10Gbps Type-A
  5. Wi-Fi / Bluetooth Antenna
  6. Audio Connectors
  7. Flash BIOS Button
  8. USB 2.0 Port
  9. HDMI™ 2.1 Port
  10. USB 3.2 Gen 1 5Gbps Type-A
  11. USB 3.2 Gen 2 10Gbps Type-C
  12. Optical S/PDIF OUT
• Dimensions :
  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
• Mounting :

  9 mounting holes

• Operating System :

  Support for Windows® 11 64-bit, Windows® 10 64-bit

• Box content :
