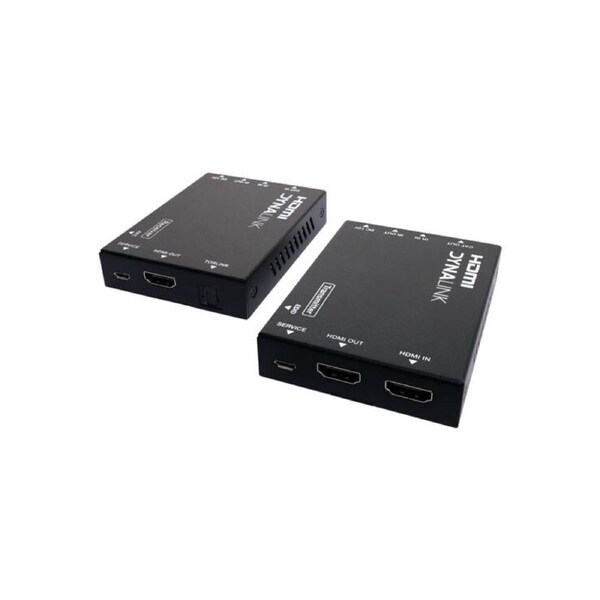

4K HDMI 2.0 Extender Over Cat 6 with Infra-red Repeater

• HDMI 2.0b and HDCP 2.2 compliant
• Supports 18Gbps video bandwidth
• Supports video resolution up to 4K/2K@60Hz RGB/YCBCR 4:4:4
• The transmission distance can be extended up to 70m via a single CAT6/6a cable
• Support HDR, HDR10, HDR10+, Dolby Vision, HLG
• Support bi-directional IR control signal pass-through
• Audio formats: LPCM 7.1, Dolby True HD, DTS HD Master
• EDID copy pass-through function between the source device and display device
• Support ARC and audio de-embedding, audio is output through the optical fibre port of the receiver
• Support bi-directional POC (Power over Cable) function
• Compact design for easy and flexible installation

• Technical
• HDMI Compliance: HDMI 2.0b
• HDCP Compliance: HDCP 2.2
• Video Bandwidth: 18Gbps
• Video Resolution: Up to 4K/2K@60Hz RGB/YCBCR 4:4:4
• IR Level: 5Vp-p
• Transmission Distance: 4K/2K@60Hz 4:4:4--70m, 1080P--70m (CAT 6/6a cable)
• Colour Space: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
• Colour Depth: 8/10/12bit
• HDR: HDR. HDR10, HDR10+, Dolby Vision, HLG
• Audio Formats: HDMI: LPCM 7.1CH, Dolby True HD, DTS-HD Master Optical: Dolby 5.1, DTS 5.1, PCM 2.0
•
• Transmitter Connection
• Input: 1xHDMI IN (TypeA, 19-pin female)
• Output: 1xHDMI Out (RJ45), 1x CAT OUT (RJ45)
• Control: 1x SERVICE (Micro-USB jack), 1x IR IN (3.5mm Stereo Mini-Jack), 1x IR OUT (3.5mm Stereo Mini-Jack)
•
• Receiver Connection
• Input: 1xCAT IN (RJ45)
• Output: 1xHDMI Out (TypeA, 19-pin female), 1x TOSLINK
• Control: 1x SERVICE (Micro-USB jack), 1x IR IN (3.5mm Stereo Mini-Jack), 1x IR OUT (3.5mm Stereo Mini-Jack)
•
• Mechanical
• Housing: Metal Enclosure
• Colour: Black
• Dimensions: Transmitter/Receiver: 90W x 68D x 18Hmm
• Weight: Transmitter: 160g, Receiver 155g
• Power Supply: DC 12V/1A; Support bi-directional POC Function
• Power Consumption: 3.36W (max)
• Operating Temperature: 0°C-40°C
• Storage Temperature: -20°C-60°C
• Relative Humidity: 20-90% RH (non-condensing)

  *Specifications are subject to change without notice.
