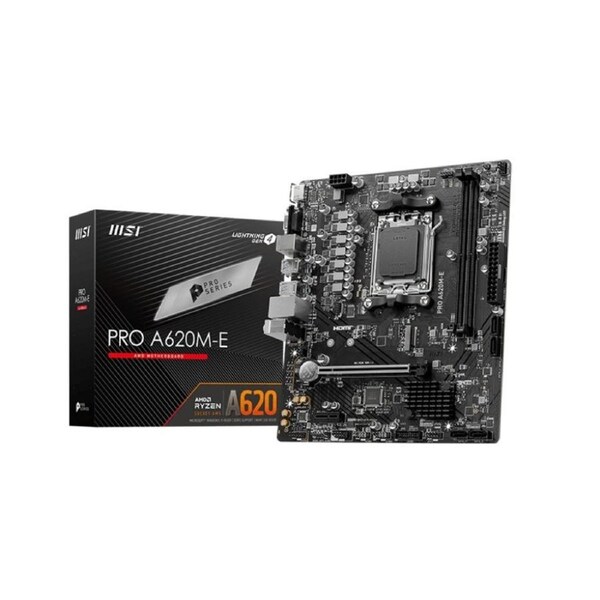

MSI PRO A620M-E AM5 DDR5 AMD Micro-ATX Motherboard, DP/HDMI/M.2/USB 3.2

PRO A620M-E

• Supports AMD Ryzen™ 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)
• Core Boost : With premium layout and digital power design to support more cores and provide better performance
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
• Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

• CPU SUPPORT :Supports AMD Ryzen™ 7000 Series Desktop Processors
  Socket AM5
• Memory :2x DDR5, Maximum Memory Capacity 96GB
  Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
  Max. overclocking frequency:
  • 1DPC 1R Max speed up to 6000+ MHz
  • 1DPC 2R Max speed up to 6000+ MHz
  Supports Dual-Channel mode
  Supports non-ECC, un-buffered memory
  Supports AMD EXPO
• Onboard Graphics :1x HDMI™
  Support HDMITM 2.1, maximum resolution of 4K 60Hz*
  1x VGA
  Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
  *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
• EXPANSION SLOT :1x PCI-E x16 slot
  1x PCI-E x1 slot
  PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
• Storage :1x M.2
  M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  4x SATA 6G
• RAID :Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• USB :2x USB 2.0 (Rear)
  4x USB 2.0 (Front)
  4x USB 3.2 Gen1 Type A (Rear)
  2x USB 3.2 Gen1 Type A (Front)
• LAN :Realtek® RTL8111H Gigabit LAN
• Audio :Realtek® ALC897 Codec
  7.1-Channel High Definition Audio
• Internal I/O :1x Power Connector(ATX_PWR)
  1x Power Connector(CPU_PWR)
  1x CPU Fan
  2x System Fan
  2x Front Panel (JFP)
  1x Chassis Intrusion (JCI)
  1x Front Audio (JAUD)
  1x Com Port (JCOM)
  1x RGB LED connector(JRGB)
  1x TPM pin header(Support TPM 2.0)
  4x USB 2.0 ports
  2x USB 3.2 Gen1 Type A ports
• LED FEATURE :4x EZ Debug LED
• BACK PANEL PORTS :
  1. HDMI™
  2. VGA
  3. Keyboard/Mouse
  4. USB 3.2 Gen 1 5Gbps (Type-A)
  5. LAN port
  6. Audio connectors
  7. USB 2.0
• OPERATING SYSTEM :Support for Windows® 11 64-bit, Windows® 10 64-bit
• PCB Dimension :mATX
  211mmx243.84mm
