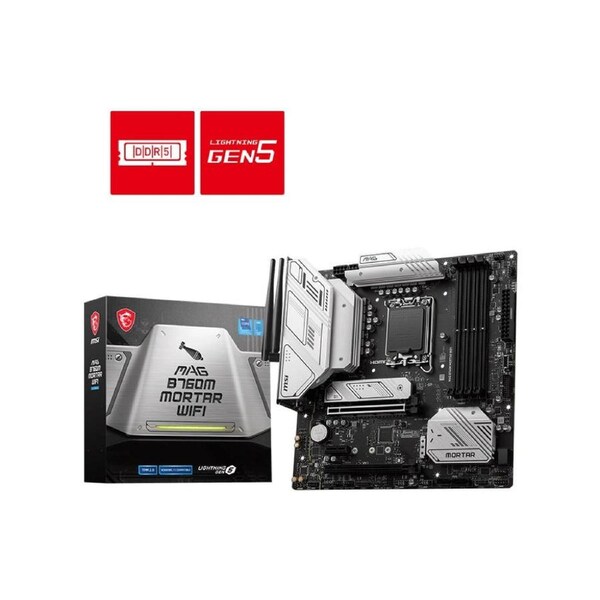

MSI PRO B760M MORTAR WIFI mATX Motherboard, 4x DDR5~192GB, 2x PCI-E x 16, 1x PCI-E x 1, 2x M.2, 4x SATA, 2x USB 3.2 , 4x USB 2.0 Specifications: CHIPSETINTEL B760 CPU SUPPORTSupports 12th13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 MEMORY4x DDR5, Maximum Memory Capacity 192GB Memory Support 7000+(OC) 6800(OC) 6600(OC) 6400(OC) 6200(OC) 6000(OC) 5800(OC) 5600(JEDEC) 5400(JEDEC) 5200(JEDEC) 5000(JEDEC) 4800(JEDEC) MHz ONBOARD GRAPHICS 1x HDMI¢ Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. EXPANSION SLOT 2x PCI-E x16 slot Supports x16x4 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) STORAGE 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 228022602242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 SATA mode, supports 228022602242 devices 4x SATA 6G USB 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) INTERNAL IO 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x OPERATING SYSTEMSupport for Windows 11 64-bit, Windows 10 64-bit PCB DIMENSIONmATX 243.84mmx243.84mm
- Please allow 4 - 7 business days for delivery
- We ship across Australia, including major cities like: Sydney, Melbourne, Perth, Brisbane, Adelaide, Canberra, Newcastle and the Gold Coast
Warranty Policy
All our products come with a 12 month standard warranty. The warranty cover does not include for damage caused by accidents, misuse, neglect and lack of maintenance, usual wear and tear, natural disaster or any other external causes.
Returns Policy
If you are unsatisfied with your purchase or you have changed your mind, you can return the products to us in its original packaging and saleable conditions within 30 days from the date of order. Please note that the product must be unused and in brand new condition, otherwise the return will not be accepted. You will be responsible for covering the return costs and the initial shipping is non-refundable. 20% re-stocking fees applies on all orders where product is not faulty and/or damaged.
