Product Details

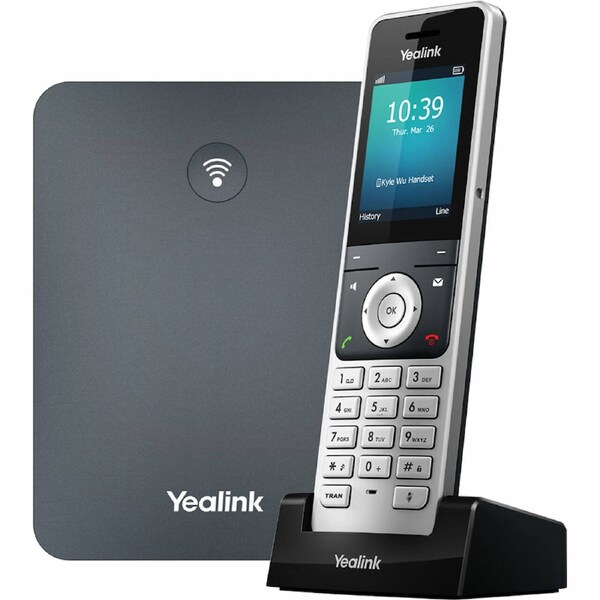

The Yealink W76P DECT Phone System is a high-performance SIP cordless phone system ideal for small and medium-sized businesses. Paring with up to a total of 10 Yealink W56H DECT handsets, allow you enjoy superb mobility and efficient flexibility immediately as well as significantly eliminates additional wiring troubles and charges. To provide a better and higher performance, this DECT IP phone not only supports up to 10 VoIP accounts and 20 simultaneous calls, but also speeds up its startup and signal connection slashes its upgrade downtime as well.
Product Features
* High-performance SIP cordless phone system
* 2.4" 240 x 320 color screen with intuitive user interface
* Up to 20 simultaneous calls
* Up to 10 DECT cordless handsets
* Up to 10 VoIP accounts
* Support Opus audio codec
* Up to 30-hour talk time (in ideal conditions)
* Up to 400-hour standby time (in ideal conditions)
* Quick charging: 10-min charge time for 2-hour talk time
* TLS and SRTP security encryption
* Noise Reduction System
* Headset connection via 3.5 mm jack
* Charger wall mountable
Specifications
Phone Features
* Up to 20 simultaneous calls
* Up to 10 handsets
* Up to 10 VoIP accounts
* Up to 2 simultaneous calls per handset
* Up to 6 repeaters per base station (RT30)
* Handset selection for receiving call
* Handset and number selection for placing call
* Paging, intercom, auto answer, dial plan
* Call hold, call transfer, 3-way conference
* Switching between calls
* Call waiting, mute, silence, DND
* Caller ID with name and number
* Anonymous call/Anonymous call rejection
* Call forward: Always/Busy/No Answer
* Speed dial/Voicemail/Redial
* Message Waiting Indication (MWI)
* Music on hold (server-based)
* Local phonebook for up to 1000 entries (store in the base)
* Remote phonebook/LDAP/XML phonebook
* Phonebook search/import/export
* 100 call history per handset: All/Placed/Missed/ Received/Forward
* Direct IP call without SIP proxy
* Reset to factory, reboot
* Keypad lock, emergency call
* Broadsoft directory, BroadSoft call log
* Broadworks feature key synchronization
* Shared Call Appearance (SCA)
* XML browser
* Action URI
Personalization
* 9 ringer melodies
* Screen saver
* Multilingual user interface
Management
* Auto-provision via TFTP/FTP/HTTP/HTTPS/RPS
* Auto-provision with PnP
* Handset upgrade: OTA (Over-The-Air)
* Configuration: browser/phone/auto-provision
* Trace package and system log export
Audio Features
* Full-duplex speakerphone
* Hearing Aid Compatibility (HAC) compliant
* Receiver volume control: 5 steps
* Ringer volume control: 5 steps+off
* Multiple advisory tones
* Acoustic warning for low battery status
* DTMF
* Wideband codec: Opus, AMR-WB (optional), G.722
* Narrowband codec: AMR-NB (optional), PCMU,PCMA, G.726, G.729, G.729A, iLBC
* VAD, CNG, AGC, PLC, AJB
* AEC (supported by W56H)
* Support VQ-RTCPXR (RFC6035), RTCP-XR
Network Features
* SIP v1 (RFC2543), v2 (RFC3261)
* SNTP/NTP
* VLAN (802.1Q and 802.1P)
* 802.1x, LLDP
* STUN Client (NAT Traversal)
* UDP/TCP/TLS
* IP assignment: Static/DHCP
* Support outbound proxy server backup
Security
* Open VPN
* Transport Layer Security (TLS)
* HTTPS (server/client), SRTP (RFC3711)
* Digest authentication
* Secure configuration file via AES encryption
* Support SHA256/SHA512/SHA384
* Three-level configuration mode: Admin/Var/User
DECT
* Frequency bands:
1880 - 1900 MHz (Europe), 1920 - 1930 MHz (US)
* DECT Standards: CAT-iq2.0
Interface
* 1 x RJ45 10/100M Ethernet port
* Power over Ethernet (IEEE 802.3af), Class 1
* Headset jack (3.5 mm)
Physical Features
* Indoor Range: 50m (in ideal conditions)
* Outdoor Range: 300m (in ideal conditions)
* Standby Time: 400 hours (in ideal conditions)
* Talk Time: 30 hours
* 2.4'' 240x320 pixels color display
* Desktop or wall mountable
* LCD backlit, key backlit
* Energy-saving ECO mode/ECO Mode+
* 12 key numerical keypad, 5 navigation keys, 2 softkeys, 6 function keys, 6 shortcut keys
* Three LED indicators on W70B:
- 1 x Registration LED
- 1 x Network Status LED
- 1 x Power Indicator LED
* External Yealink AC adapter: AC 100-240V Input and DC 5V/600mA Output
* Color: Handset: Alabaster Silver ; Base: Classic Grey
* Handset size: 175mm x 53mm x 20.3mm
* Base station size: 130mm x 100mm x 25.1mm
* Operating humidity: 10 ~ 95%
* Operating temperature: 0~+40oC (+32~104oF)
WHAT'S INCLUDED
* W56H Handset
* W70B Base Station
* Base Stand
* USB Charger Cradle
* Two Power Adapters
* Ethernet Cable
* Belt Clip
* Rechargeable Battery
* Quick Start Guide
