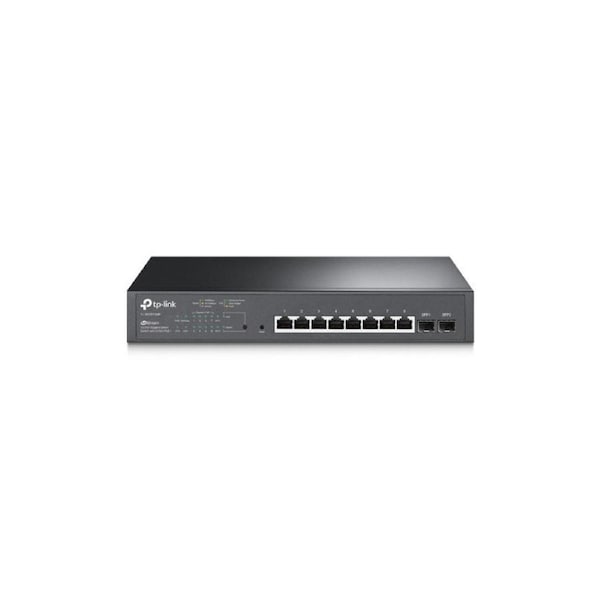

TP-Link TL-SG2210MP 10-Port Gigabit Smart Switch with 8-Port PoE+ 1xFan 14.9Mpps Support Omada SDN, 802.1p CoS/DSCP QOS, IGMP Snoop Rack Mountable
TP-Link TL-SG2210MP JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+ With Omada SDN Supported
* Features 8 802.3af/at compliant PoE+ ports, with total PoE power budget of 150 W and useful PoE power management features
* Omada SDN platform integration provides 100% centralised cloud management to create a highly scalable network
* Gigabit Ethernet connections on all ports provide full speed of data transferring
* Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, and Radius Authentication
* L2/L3/L4 QoS and IGMP snooping optimise voice and video applications
* WEB/CLI managed modes, SNMP, RMON bring abundant management features
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface * 8x 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX)
* 2x 100/1000 Mbps SFP Slots
Network Media * 10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m)
* 100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m)
* 100BASE-FX: MMF, SMF
* 1000BASE-X: MMF, SMF
Fan Quantity 1
Physical Security Lock Yes
PoE+ Ports(RJ45) * Standard: 802.3at/af compliant
* PoE+ Ports: 8 Ports
* Power Supply: 150 W
Dimensions ( W x D x H ) (294 x 180 x 44 mm)
Mounting Rackmount/Desktop
Max Power Consumption * 12.2 W (110 V / 60 Hz with no PD connected)
* 173.9 W (110 V / 60 Hz with 150 W PD connected)
Max Heat Dissipation * 41.63 BTU/h (with no PD connected)
* 539.35 BTU/h (with 150 W PD connected)
PERFORMANCE
Switching Capacity 20 Gbps
Packet Forwarding Rate 14.9 Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 9 KB
