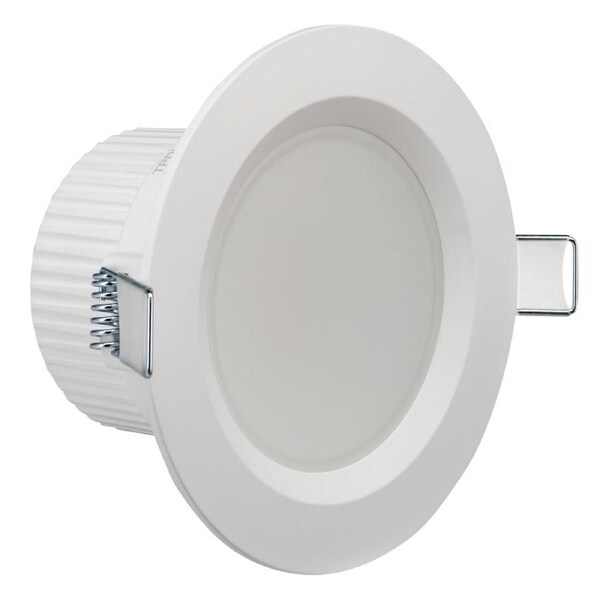

Clipsal 7W Tri-Colour Dimmable LED Downlight Kit (90mm) - TPDL1C3
The TPDL1C3 LED Downlight is suitable for multiple illumination applications from residential to commercial buildings. The slightly recessed frosted diffuser ensures reduced glare and soft glow output. The integrated colour temperature selector switch enables the choice of 3000K, 4000K and 6000K outputs to ensure the perfect illumination for a wide variety of installations.
Features:
- Tri-Temperature colour switch provides multiple colour outputs to be selected on installation (Default 3000K)
- White Trim colour with Brushed Chrome and Black options (sold separately)
- IC-4 rating allows the fitting to be abutted and covered by building material
- Designed and tested to work with Clipsal 30/40/60 mech LED Dimmers to ensure smooth dimming performance and true compatibility
- Product can connect with Clipsal Wiser system to form part of a smart/connected home solution
- Colour Temperature / Lumens: 700lm @ 3000K, 730lm @ 4000K, 750lm @ 6000K
- Cut-Out: 90mm / Trim: 110mm diameter
- 3 Year In Home Replacement Warranty!
All orders are dispatched within 1-2 days of ordering.
Delivery varies by location, please see the expected timeframe to receive your product below:
Metro: 1-4 business days
Regional: 3-7 business days
No delivery to PO Box addresses or Parcel Lockers.
If you are unavailable at the time of delivery re-delivery fees may apply.
Change of Mind Returns:
We want you to love your product so if you are not completely satisfied with your purchase let us know.
Most products come with a 30 day change of mind policy. If at any time within the first 30 days from purchase date you are not completely satisfied with your order, please contact us for return approval. Once received and inspected, we will facilitate an agreed resolution.
Please Note:
Postage is paid by the customer
The product must be returned in the original packaging, brand new in un-used condition
We do not accept responsibility for return items until they reach our warehouse, so we strongly recommend using tracking and/or insurance for the delivery
Fees may apply
Warranty Claims:
Most of our products are supported by a 12 month warranty. This warranty covers all manufacturer faults with the product. Some of our products may have a different warranty period, please check the product description for this. Should an issue arise with your order, please contact us to raise a warranty claim.
- Catalogue Number: TPDL1C2
- Voltage rating: 240 Vac, 50 Hz
- Total System Power: 9 W
- Dimmable: Yes
- Colour Temperature: 3000K / 4000K / 6000K
- Lumens: >700 >730 >750
- CRI: > 80
- IP Rating: IP44 (from front)
- Beam Angle: 90 degrees
- Lifespan (L70): 50,000 hrs
- Power Factor: 0.9
- Operating Temperature: - 10°C to +45°C
- Operating Humidity: +10% to +95% Non Condensing
- Run Current @ 230V: 0.041 A
- Inrush Current: 3.89 A
- Inrush Current Duration: 20 μs
- Earth Leakage Current: < 0.1 mA
- Mounting Depth: 65mm
- Trim Width: 110 mm
- Cut-out: 90mm
- Weight: 0.227 kg
