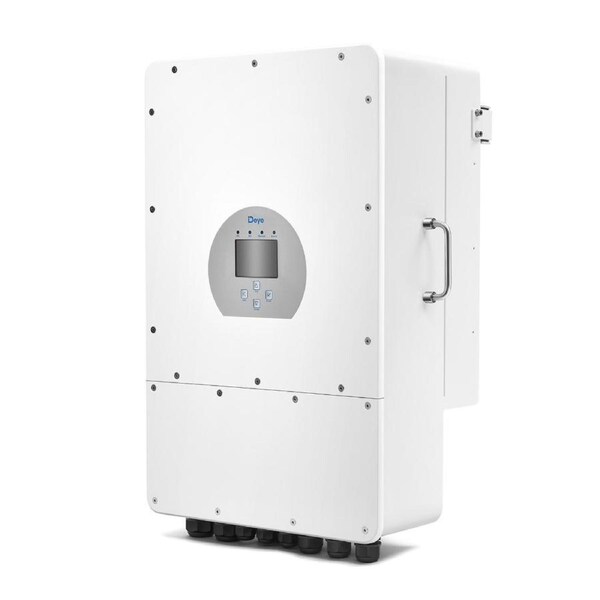

Deye 12KW 12000W Hybrid Solar Inverter MPPT Charger Regulator 48V Low Voltage
Power your home or business with confidence-on-grid, off-grid, or anywhere in between. The 12KW Deye Multi-Function Hybrid Inverter is a powerful, future-ready solution that seamlessly integrates solar generation, battery storage, and grid backup. Whether you're preparing for outages, optimizing energy costs, or going fully off-grid, Deye delivers unmatched flexibility, efficiency, and reliability in one compact system.
Features
- 【Top-Tier Efficiency, Trusted Performance】With up to 97.6% maximum efficiency and 99.9% MPPT efficiency, Deye ensures every drop of solar energy is put to work. Save more, waste less, and enjoy seamless operation day after day.
- 【Unmatched Flexibility & Scalability】Supports up to 16 units in parallel, both on-grid and off-grid, plus multiple battery connections-perfect for everything from residential rooftops to commercial microgrids. Compatible with lithium and lead-acid batteries and even supports charging from diesel generators.
- 【Ultra-Fast Switching】Enjoy a 4ms transfer time from grid to battery power-so fast, even traditional appliances like fixed-frequency air conditioners won't blink. You stay cool, connected, and in control.
- 【Smarter Energy Use】Intelligent features like Smart Load Management and Grid Peak Shaving help balance energy loads, lower peak demand charges, and maximize your system ROI over time.
- 【Reliable After-sales Support】With IP65 waterproof protection, -40°C to +60°C operating range, and smart cooling, the Deye inverter is ready for real-world use. Backed by a 10-year warranty and full certification for Australian standards (AS/NZS 4777.2), it's ready to power your future with peace of mind.
Specifications
- Quick Look
- Rated Output: 12KW
- Battery Voltage: 48V
- Max Efficiency: 97.6%
- Warranty: 10 Years
- Battery Input Data
- Battery Type: Lead-acid or Lithium-ion
- Battery Voltage Range (V): 40~60
- Max. Charging Current (A): 240
- Max. Discharging Current (A):240
- Charging Curve: 3 Stages / Equalization
- External Temperature Sensor:Yes
- Charging Strategy for Li-Ion Battery: Self-adaption to BMS
- PV String Input Data
- Max. DC Input Power (W):15600
- Rated PV Input Voltage (V):550 (160~800)
- Start-up Voltage (V):160
- MPPT Voltage Range (V):200-650
- Full Load DC Voltage Range (V):350-650
- PV Input Current (A):26+13
- Max. PV ISC (A): 39+19.5
- Number of MPPT / Strings per MPPT: 2/2+1
- AC Output Data
- Rated AC Output and UPS Power (VA): 12000
- Max. AC Output Power (W): 12000
- AC Output Rated Current (A):17.4
- Max. AC Current (A):17.4
- Max. Continuous AC Passthrough (A):45
- Peak Power (off grid) :2 time of rated power, 10 S
- Power Factor:0.8 leading to 0.8 lagging
- Output Frequency and Voltage:50Hz; 3L/N/PE 400V/340V-440V 415V/353V-456.5V
- Grid Type: Three Phase
- DC injection current (mA):THD<3% (Linear load<1.5%)
- Efficiency:
- Max. Efficiency:97.60%
- Euro Efficiency:97.00%
- MPPT Efficiency: 99.90%
- Certifications and Standards
- Grid Regulation : AS/NZS 4777.2
- Safety EMC / Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
- General Data
- Operating Temperature Range (°C):-40~60°C, >45°C derating
- Cooling : Smart Cooling
- Noise (dB): <45 dB
- Communication with BMS:RS485; CAN
- Protection Degree: IP65
- Installation Style: Wall-mounted
- Warranty: 10 Years
- Dimensions & Weight
- Weight (kg):33.6
- Size (mm):422W x 702H x281D
- Package List
- 1x 12KW Deye Hybrid Inverter
- 1x User Manual
Reliable. Scalable. Smart. Whether you're optimizing your energy bills or preparing for grid instability, the Deye Hybrid Inverter is your all-in-one solution. Don't settle for less-upgrade your solar power system today.
