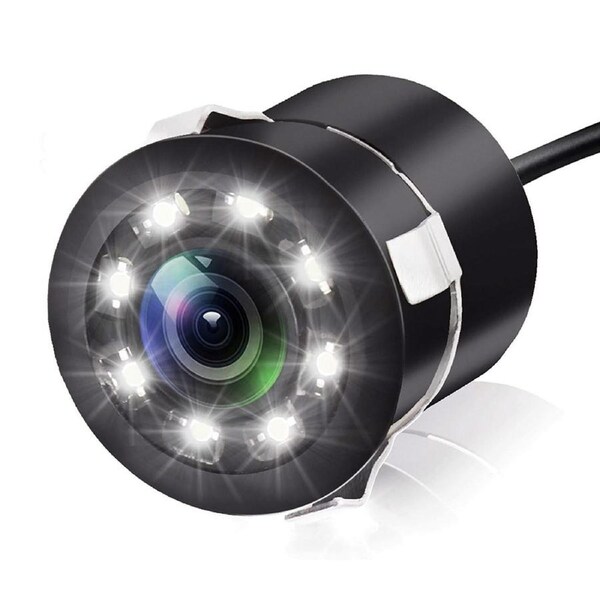

-Drill Hole Style Car HD Rear-View Camera, gives you a full sight of the back of your car when you are driving.
-8 LED Bright Night Vision ensures the car driving safety when backup or parking at night.
-Helps to avoid incidents, accidents abrasion and ensure your safety.
Anti-fog glass, CMOS imaging sensor.
-Support NTSC Video System
-With the high sensitivity, you can get rid of poor rear vision.
-Use high-quality Chips to make vivid and clear images.
-Compact design, easy to install and operate.
-IP68 waterproof design, shock-proof and anti-jamming functions.
-Applicable to various vehicles: car, truck, RV, etc.
-Can connect to any type of monitor with a composite yellow RCA jack.
-The Camera can be used as a front/side/rear view camera by the white and green control loop wire.
-High definition and up to 170 degrees wide viewing angle.
-With 8 LED lamps, will be very clear even at night.
-Compatible with DVD and car rear view monitor automobile navigation.
-170 degree wide angle, find the potential reverse in reality, such as kids in a blind eye, novice drivers reverse the dilemma, transfer from the car parking area.
-With CMOS core, the video and picture will be more precise.
-Waterproof, shockproof, and dustproof.
-Good quality and longer service time.
Specifications:
-Image Sensors: PC1030 1 4 Inch Colour CMOS
-Sensor Area: 4.08 x 3.12mm
-Effective Pixels: 648 x 488 Pixels
-LED Quantity: 8 LED
-Lens Angle: 170 degrees
-Image Pipeline Feature: Auto exposure, AWB, AGC, Auto flicker detection and cancellation.
-Video System: NTSC Automatic throw-over
-Minimum Illumination: 0.2Lux 0Lux with IR on
-Scanning System: 2:1 Interlace
-Resolution: 420TV Lines
-Electronic Shutter: 1 60 NTSC 1 50 PAL 1 1000s
-Gamma Coefficient: 0.45
-S N Ratio: Greater than 45.6db
-Dynamic Range: Greater than 63.5db
-Waterproof Grade: IP 68
-Operation Temperature: -20 degrees C to 75 degrees C
-Storage Temperature: -40 degrees C to 85 degrees C
-Video Output: RCA connector, 1.0vp-p, 75Ohm
-Working Power: DC12V
-Current Consumption:60mAh
-Video cable length: Approx. 6m or 236.2in
-Power supply cable length: Approx. 1.2m or 47.2in
-Drill Hole Diameter: Approx. 20.00mm or 0.73in
-Camera Dimension: Approx. 25 x 21 x 18.5mm or 0.98 x 0.83 x 0.73in
Package Inclusions:
-1 x 8 LED Round Back Up Camera
-1 x Video Cable
-1 x Power Cable
-1 x Hole Saw
Notes:
-Actual colors may vary due to computer monitors displaying colors differently.
-Due to the nature of the manufacturing process and manual measurement, product sizing may vary slightly.
