Specifications & Features:
Camera:
-Image sensor: 1/2.8 inch V20+ SC135 sensor
-Video resolution: 1080P (1920*1080)1920*1080
-Signal system: PAL/NTSC
-Minimum illumination: Olux (When IR ON)
-Video output: 1.0vp-p 75
-Lens: 3.6mm
-Number of infrared LEDs: 24
-Day and night function: Built-in IR-CUT
-Night vision distance: Up to 66ft/20m
-Noise-signal ration: d"41db
-Operating power: DC12V?10%
-Consumption: ÿ5W
Video:
-Codec: H.264
-Monitor quality: VGA, HDMI: HD
-Preview ability: 4*1080N
-Encode ability: 4*1080N@12fps
-Decode ability: 4*1080N@12fps
-Multi-mode input: analog: 4*1080N
-Hybrid: 4*1080N (analog) + 4*960P (network)
-Network only: 4*720P; 4*1080P; 8*720P;8*1080P;1*1080P
-Motion detection: Each screen can be set to 192 (16*12) detection areas; multi-level security sensitivity can be set (limited local channel)
Record and playback:
-Record mode: Manual > Alarm > Motion detection > Timing
-Local playback: 4ch (local input mode)
-Seatrch mode: Search by time, calender, event, channel
External inferface:
-Video input: 4ch BNC
-Video output: 1ch VHA, 1ch HDMI
-Loop vout: N/A
-Audio I/O: O/O
-Alarm I/O: O/O
-Network interface: RJ45 10M/100M self-adaptation
-PTZ control: support kinds of PTZ protocols
-USB: 2* USB 2.0 ports
-HDD: 1*SATA ports (Max 6TB/per)
Storage and backup:
-Video storage: HDD, network
-Backup mode: Network, USB hard disk, USB burner, SATA burner
General:
-Power supply: 12V/2A
-Assembly Required: Yes
-Number of Packages: 2
-1080P HD
-4 Channel 1080N 5-in-1 DVR
-Supports AHD, TVI, CVI, CVBS and IP camera
-Support P2P technology
-High resolution cameras with Built-in IR-cut
-Remote access
-View on phone or computer by logging in free app
-Customizable motion detection
-Instant E-mail alarm
-HDMI and VGA outputs
-IP66 all-weather design
-Indoor and outdoor use
-Support USB backup and storage
-Data protection when power outage
-Support 4 channel simultaneous live viewing via smart phone
-Support Capture and Record in your smart phone
-Support Cloud System for Remote Access/Support HDMI Output
-Easy to install
-Bonus 4TB hard drive and USB mouse

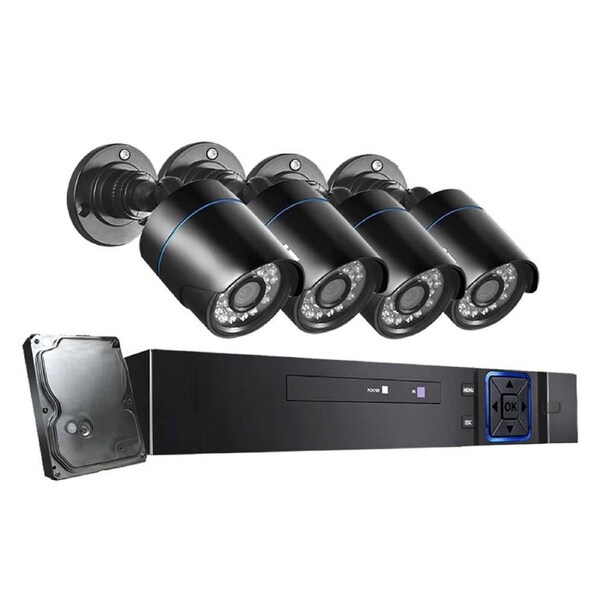

Package Inclusions:
-4 x 1080P Camera
-1 x 1080P 4CH DVR
-1 x 4TB Hard Drive
-4 x 18.3m (60ft) 2-in-1 BNC & Power Cable
-1 x 1-4 Splitter Cable
-2 x 12V/ 2A Power
-1 x USB Mouse
-1 x User Manual
