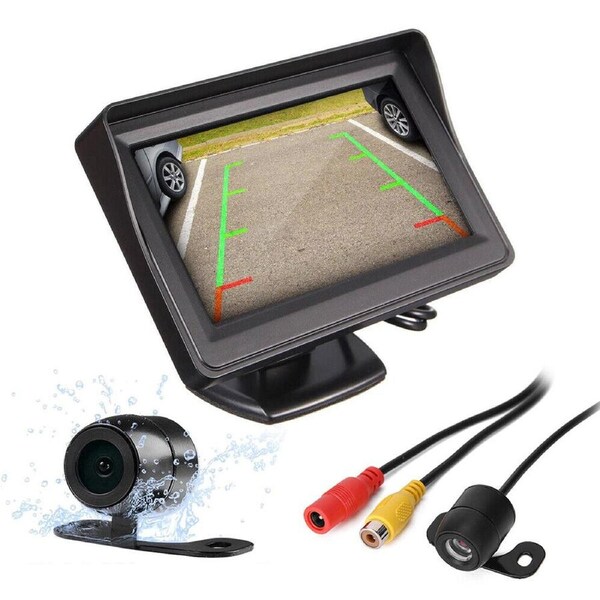

Waterproof HD Car Reverse Camera Kit Monitor Night Vision Rear View Parking Cam
Fit all CCTV camera, car Reversing camera, car DVD player.
Waterproof day/night Reversing camera
Easy installation for DIY usage
Real-time rear view while back up
IR Reverse camera with wide view angle 170°
With night vision
Specifications:
Condition: 100% brand new and high quality
Screen Size:4.3 inch(16:9)
Resolution:320(H) x RGB x 240(V)
Model: PAL/NTSC (Automatic throw-over)
Power Supply:DC 12V
Visible Area:96mm x 54mm
Power Consumption:2W
2-channel video input:V1/V2 auto switching(V1 display first)
Display blace screen on no signal.
Image device: 1/4-inch colour
TV system PAL or NTSC
Resolution 420 TV lines
Electric Shutter PAL:625 Lines.25 Field /sec NTSC :720 Lines.25 Field/sec
Effective pixels PAL: 720X 576 NTSC: 720X 480
Minimum illumination: 0.3 Lux
Viewing angle: 170°
S/N ratio >48dB (AGC-OFF)
Video output RCA connector, 1.0vp-p, 75ohm
Current consumption ≤120mA
Power supply DC8V-12V
Operating temperature -30 to 65 degrees centigrade, RH95% Max.
Storage temperature -35 to 70 degrees centigrade, RH95% Max.
Other items automatic white balance, AGC and BLC
Water-proof Yes, to IP68 standard
How to Install:
Mount the camera to your car's license plate area, back window, or any other suitable place
Adjust the lens of the camera to its best position.
Connect power wire (red and black) to your vehicle DC 12V power system.
Connect the video output (yellow wire) of the camera to the display in your vehicle.
Note:
Please connect the rearview camera's power cable with reversing lamp,and connect camera's video cable with LCD's yellow cable(Video V1),then the LCD will show Camera's video when you are Reversing,and stop playing movie(auto switching)
Package Includes:
1 x Car reversing camera
1 x 4.3'' Digital TFT LCD Monitor
1 x Power Cable for monitor
1 x 6M Video cable
1 x Power cable for camera
1 x User manual
