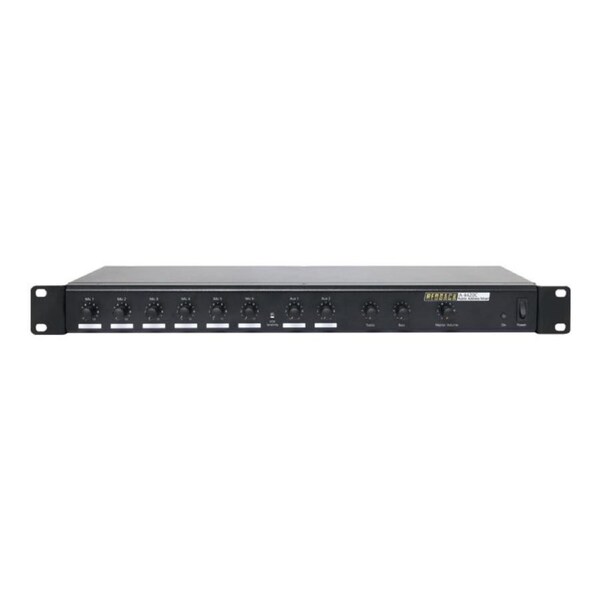

8 Channel Public Address (PA) Mixer

• 6 microphone and 2 line inputs
• All mic inputs are 3 pin XLR balanced
• Line inputs via twin RCA sockets
• Separate bass and treble tone controls
• Individual input and master volume controls
• Optional VOX muting of line inputs
• Optional phantom power for each mic input
• Microphone bass cut internally selectable
• Mic inputs routed via tone controls or bypassed
• 24VDC input

• I/N: 17635
• Barcode: 9321758249574
• Shipping Weight: 2.40000Kg
•  Packaging Sizes
• EACH: 1
• Auxiliary
• No. of Channels: 2
• Sensitivity (master full): 260mV
• Signal to Noise Ratio: better than 76dB
• Frequency Response (±3dB): 60Hz - 20kHz
• Input Impedance: 100k Ohm
• Muting Level: -50dB
• Mode: Unbalanced
• Connector Type: Stereo RCA
• Tone Control
• Bass Control: ±9dB at 80Hz
• Treble Control: ±10dB at 10kHz
• Bass Cut Switch on Microphone
• Switch “ON”: -6dB/Octave from 150Hz
• Phantom Power
• Voltage: 12V
• Output Impedance: 3.4k ohm
• Microphone
• No. of Channels: 6
• Sensitivity (master full): 1.2mV
• Signal to Noise Ratio: better than 71dB
• Frequency Response (±3dB): 60Hz to 20kHz
• Input Impedance: 600 Ohm
• Mic Impedance: 200 - 600 Ohm nominal
• Mode: Balanced
• Connector Type: 3 Pin XLR Female
• Output
• Signal to Noise Ratio :
• (all controls mid way) -85dB, ref 0dBm
• (all controls maximum) -58dB, ref 0dBm
• Impedance: 600 Ohms
• Distortion: Less than 0.06%
• Max Output Level: +19dBm
• Mode: Balanced
• Connector Type: 3 Pin XLR Male
