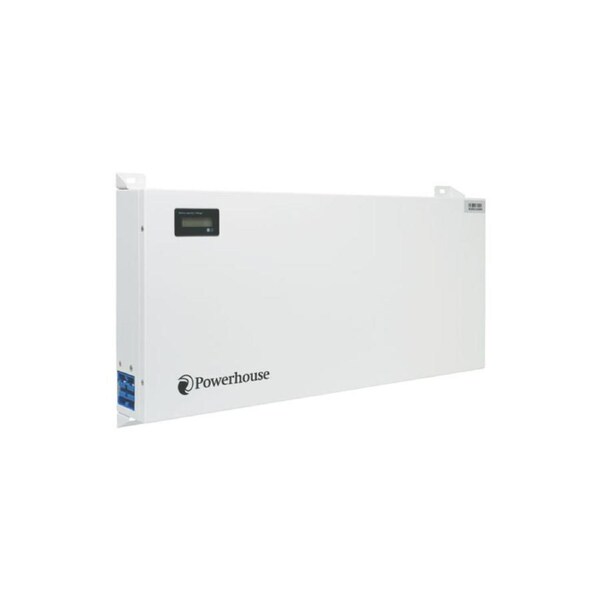

12.8V 100Ah Slimline Lithium LiFePO4 Battery
About LiFePO4.
The latest generation in maintenance free batteries is here! LiFePO4 batteries offer longer service life than traditional lead acid batteries, plus weigh less than HALF as much as SLA batteries. LiFePO4 also provide more usable life per cycle, allowing for longer run times by holding a higher voltage until capacity is almost exhausted. These batteries will also maintain 80-90% charge when in storage - far higher than their lead acid counterparts. Each battery is fitted with an internal battery management system to provide safe charging and discharging at all times. This system provides internal short circuit, over temperature and under/over voltage cut off.
Note: Does not mate with Grey Anderson SB120 connector - SUITS BLUE ANDERSON ONLY, see accessories below (this plug has a slightly different keyway).
Factory supplied at 30% charge for safety compliance. Must be charged fully before use.
- 5 year warranty.
- Slimline casing just 75mm high!
- High discharge rate design allows current draw up to 100A.
- Battery capacity and voltage readout.
- 120A Anderson style connection for easy integration with solar & appliance cabling.
- Stable LiFePO4 chemistry suitable for in vehicle use as auxiliary batteries.
- Internal battery management system for safe charging and discharging.
- I/N: 17448
- Barcode: 9321758161722
- Shipping Weight: 17.00000Kg
- Packaging Sizes
- EACH: 1
- CARTON: 1
- LAYER: 4
- SHPPER: 28
- PALLET: 28
- Electrical
- Nominal Voltage: 12.8V
- Amp Hour Capacity: 100AH
- Reserve Capacity @ 30A: 200 min
- Energy Density: 1280Wh
- Resistance - Milliohms: <50
- Efficiency - Round Trip: >99.5%
- Self Discharge per Month: <3%
- Max 4 - Series Connections: 12-48V
- Note: When used in series each battery will need to be discharged to cut off before connecting so that all cells are all balanced.
- Parallel Connections: No Limit
- Mechanical
- Dimensions: 600 x 275 x 75mm
- Weight: 20KGS
- Terminal Type: Anderson 120A
- Terminal Current: 1C Max
- Case Material: SSP
- Case IP Rating: IP50
- Cell Type - Chemistry: LiFePO4
- Temperature
- Discharge Temperature: -20 to 60°C
- Charge Temperature: -20 to 45°C
- Storage Temperature: -5 to 35°C
- BMS High Temp Cut Off: 80°C
- BMS Reconnect Temp: 50°C
- IP: 50
- Charge
- Recommend Charge Current: 50A
- Max Charge Current: 100A
- Charge Current (0 to -10°C): <20A
- Charge Current (-20 to -10°C): <20A
- Recommend Charge Current Voltage: 14.2 - 14.6V
- BMS Charge Voltage Cut Off: 15.0V
- BMS Reconnect Voltage: 14.4V
- Balancing Voltage: 13.6
- Discharge
- Max Cont Discharge Current: 100A
- BMS Current Cut Off: >130-400A 10S
- BMS Voltage Cut Off: 10V
- BMS Reconnect Voltage: 12V
