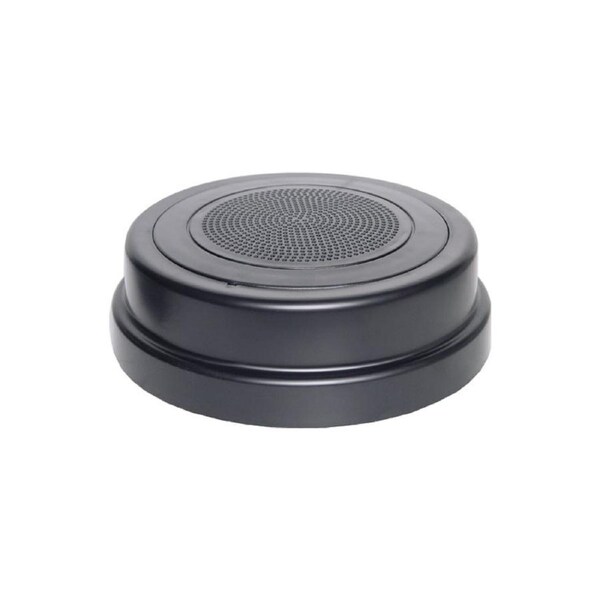

5W 100V 100mm (4”) Fire Speaker Black AS ISO7240.24

• Designed to meet AS ISO7240.24 standard for fire & evacuation warning systems*
• Excellent speech intelligibility
• High quality speaker driver developed for BGM, paging and emergency warning applications
• Patented 2 way latching system reduces installation time.
• Fitted with 4 way wire protect terminal block for loop in, loop out wiring as required by Australian Standards.
• Fitted with supervisory capacitor for line monitoring.
• High impact enclosure & grille.
• Australian designed & assembled.
• 5 year warranty.

• Electrical
• Rated Noise Power: 5 Watts (100V line)
• Power Taps & Impedance (100V line): 0.33W (30kΩ), 0.66W (15kΩ), 1.25W (8kΩ), 2.5W (4kΩ), 5W (2kΩ)
• Sensitivity: 88dB (1W @ 1m), 76dB (1W @ 4m)
• Maximum Sound Pressure Level: 95dB (5W @ 1m), 83dB (5W @ 4m)
• Frequency Response: 100Hz - 15kHz
• Coverage Angle (-6dB): 1000Hz: 140°, 2000Hz: 105°, 4000Hz 80°
• Environmental Type: A (for indoor applications as per standard)
• Line Monitoring: Yes, 22µF bipolar capacitor
• Applicable Cable: 2.5mm2 (14AWG) max conductor area
• Connection: 4 way screw terminal
• Mechanical
• Speaker Component: 100mm (4”) paper cone speaker
• Material:
• Black flame retardant ABS grille and housing (Taitalac 8540T)
• Clear Flame retardant ABS spring clips (Makrolon 6557)
• Mounting Method: Surface Attachment
• IP Rating: IP 21C
• Dimensions: 210Ø x 67mm
• Weight: 0.81kg
• Environmental
• Operating temperature: -25°C to +55°C
• Relative humidity: < 95%
• Additional Installation Accessories
• C 0699 Conduit mounting plate
