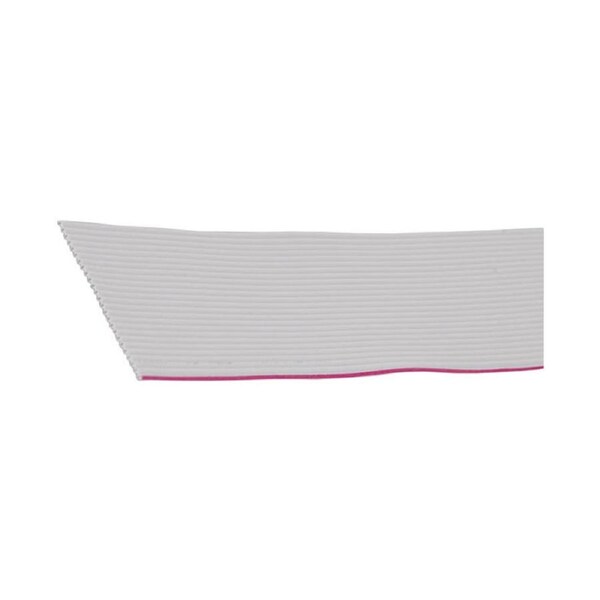

25 Wire IDC Cable

• Conductor
• Size: 28AWG (0.89mm2)
• Material: tinned copper
• Construction: 7/0.127mm
• Insulation
• Material: Fire resistant PVC 105ºC
• Average thickness: 0.26mm
• Minimum thickness: 0.18mm
• Diameter: 20 x 1.29±0.15mm
• Colour: grey (edge with red trace)
• Electric
• Conductor resistance: max. 237Ω/km, 20ºC
• Insulation resistance: min. 100MΩ/km, 20ºC
• Capacitance: 60pF/m (G-S-G), 42pF/m (G-S)
• Inductance: 1.45µH/m
• Impedance: 100±10Ω (G-S-G)
• Propagation delay time 5.0ns/m
• Spark test 2500V
• Dielectric strength: min. 2kV in 1 minute
• Rating voltage: max. 300V
• Rating temperature: -20ºC to 105ºC
• Standard: UL2651/CSA C22.2 No. 210.2
