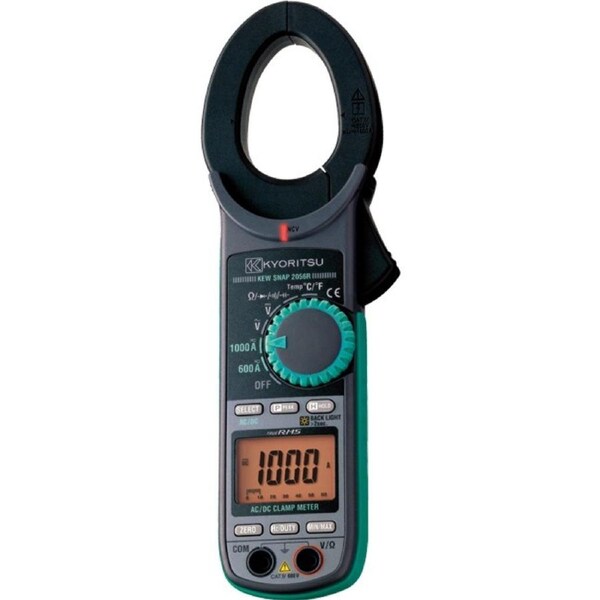

2056R KYORITSU DIGITAL CLAMP METER
- Designed to meet international safety standard IEC 61010-1 CAT.IV 600V.
- CAT.IV Clamp Meters can measure the Voltage and Current in both every low and high power circuits.
- Thus, very useful for power distribution companies,power utilities and maintenance fields.
- True RMS enables an accurate measurement (2056R).
- Red LED, as "Non Contact Voltage" function, gives warning to the user on the presence of AC Voltage.
- Double molding gives comfortable feeling in palm.
- 6039 counts with Bar Graph display.
- MIN/MAX function enables to keep easily min & max value during measurement.
| AC A | 0~600.0/1000A |
| (50/60Hz) | |
| (40~500Hz) | |
| DC A | 0~600.0/1000A |
| lusmn;5dgt | |
| AC V | 6/60/600V |
| Auto Ranging | |
| (50/60Hz) | |
| (40~400Hz) | |
| DC V | 600m/6/60/600V |
| Auto Ranging | |
| lusmn;3dgt | |
| Ω | 600/6k/60k/600k/6M/60MΩ (Auto Ranging) |
| (600~6M) / ±5%rdg±8dgt (60M) | |
| Continuity buzzer | Buzzer Sounds at 100Ω |
| Frequency/DUTY | 10/100/1k/10kHz (Auto Ranging) / 0.1~99.9% |
| Temperature | -50ºC ~ 300ºC (With the use of Temperature probe 8216) |
| Conductor Size | Ø40mm |
| Withstand Voltage | 6880V AC for 5 seconds |
| Safety Standard | IEC 61010-1 CAT.IV 600V, |
| IEC 61010-031, | |
| IEC 61010-2-032, | |
| IEC 61326 | |
| Power Source | R03 (1.5V) (AAA) × 2 |
| Dimensions | 254(L) × 82(W) × 36(D)mm |
| Weight | 310g |
| Accessories | 7066 (Test Lead) |
| 9094 (Carrying Case) | |
| Instruction Manual | |
| Option | 8216 (Temperature Probe) |
