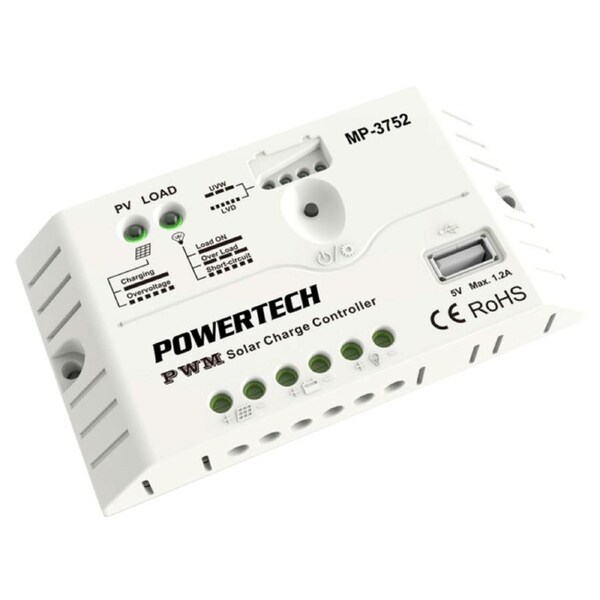

MP3752 12V 24V 20A SOLAR CONTROLLER
Features:
- Automatic charge mode selection
- Suitable for 12V and 24V battery banks
- USB charging port on front panel
- Charging Modes: Bulk, Equalise, Float
- Supports: Sealed, Gel and Flooded
- USB Output: 5V @ 1.2A
Specifications
| DC current rating : 20.0A |
| DC Voltage : 12.0V, 24.0V |
| IP Rating : IP20 |
| Dust/Particle Ingress Protection : 2 - Objects > 12.5mm, Fingers or small objects |
| Liquid/Moisture Ingress Protection : 0 - Not protected |
| Operating Temperature : -35.000000°C, 55.0°C |
| Input Type : Screw Terminal |
| Output Type : Screw Terminal |
| Total Current Rating : 1.2A |
| Number of Ports : 1.0pc |
| Length : 148.0mm |
| Width : 86.0mm |
| Height : 35.0mm |
| Weight : 160.0g |
| Charge Controller Technology : Pulse Width Modulated (PWM) |
| Max PV Open Circuit Voltage : 50.0V |
| Max Charging Current : 20.0A |
| Max Load Current : 20.0A |
| Max Solar Panel Array : 240.0W, 480.0W |
