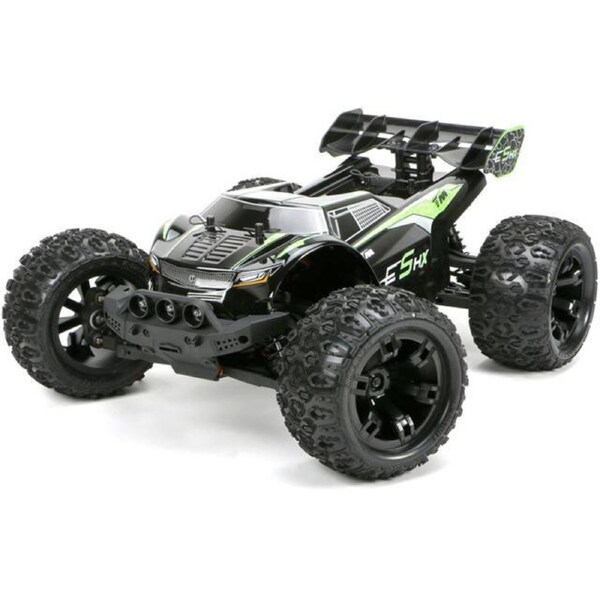

Team Magic E5 HX 1:10 4WD Off Road Brushless RC Buggy Truck Fastest 1:10th RC Truck on the market - up to 95kmph 2S 7.4V Li-Po Battery Version - reaches speeds of 70kmph (supplied with 7.4V 3500mAh LiPo battery and suitable 240V Battery Charger) The E5 HX is currently the fastest and strongest 1:10 scale Monster Truggy Truck on the market. The E5 was designed with the durability of 1:8th scale and the agility, speed and handling of the 1:10th scale. The front bumper is also equipped with three white and two red bright LEDs. The Team Magic E5 includes a strong, well-shaped pick-up Monster Truck polycarbonate body to protect the internal components. Durable 14mm wheel hexes help handle the high power transfer towards the high-traction compound K-Factory tires which offer additional performance and fast acceleration on every surface. We also added an adjustable and durable ball-raced wheelie bar on the rear to give highest control and support wheelie's. All plastic chassis components are of high-quality fibre material which offers highest durability as well as less tweak for better geometry and better transmission efficiency. The front and rear arms are symmetric and two of each part are included when you buy spares which will save you on the cost of parts. Dog bones can be easily lost and have a lot of wear - this is the reason why the Team Magic E5 has high-quality steel CVD's driveshafts in front and rear (this is a standard a all Team Magic models). The E5 HX has adjustable turnbuckles as well as adjustable servo saver out of the box. We decided for high-volume oil shocks and long travel suspension to absorb big jumps and bumpy surfaces better. Look at the rear end - push down! There is active toe in on the rear which gives you better control during acceleration and landing. The Team Magic E5 HX chassis has an easy multi-port plug which let you change electronics easier. Less cables in the car thanks to cable tunnels. Quick release battery straps hold your 2- or 3-cell batteries in place. The all-new dust/dirt filter on the THOR speed control protect the fan from water and dust. We used the best electronic components we could find in the market! A 15kg waterproof metal gear blue Savöx servo gives you steering precision in any situation. See the waterproof receiver in the waterproof receiver box. The 80Amp THOR speed control and 4400kv 550 sized THOR motor make the Team Magic E5 a real rocket. To handle that high power level and do the E5 again more durable we used 8th scale module 1.0 steel transmission as well as 5mm motor shaft. Drive a rocket - choose the Team Magic E5 HX! - Lenght 428mm - Widht 343mm - Wheelbase 270mm - Weight 2.7kg - tire dimension 5.1x3.25x2.75 - ESC waterproof 80A, 2-3s Lipo - Motor 550 brushless 4400kv - Gear M1.0 steel - Transmission 4wd - Big Bore oil shocks - ESC dirt + water filter - Transmitter HARD 2.4ghz - 15kg waterproof Savox servo w/metal gear - 4 Leds installed - Easy Access multi port - Quick release battery holder - adjustable Wheelie Bar - K-Factory tires - Top Speed 70km/h @ 2s* - Top Speed 95km/h+ @ 3s*
- Estimated Delivery Time:
- 1 to 2 Business days for Sydney, Newcastle, Wollongong and Canberra
- 2 to 3 Business days for Melbourne, Brisbane and surrounding areas
- 3 to 10 Business days for Adelaide, Perth and Tasmania
Returns Policy
We understand that there are instances where you might change your mind about your purchases. Oz Direct offers a 14 day change of mind policy. Products returned must be in “as sold” condition. That means that products must returned in original undamaged packaging with complete accessories and instruction manuals supplied. Products that meet the mentioned “change of mind policy” will have the refund returned to the original payment method.
Return freight for products under change of mind policy is covered by the purchaser. Freight or Shipping costs paid on the original invoice under the Change of Mind Policy is not refundable.
Please note that there are product exclusions from our change of mind policy. Product change of mind exclusions will be specifically mentioned in the products detail. These product exclusions are due to health and safety reasons and no return or refund will be permitted.
Warranty Policy
Oz Direct offer 12 months warranty, unless stated otherwise in the product copy or Care/Warranty tab on the products page on our website. The products we offer comes with guaranteed that cannot be excluded under the Australian Consumer Law. The customer is entitled to a replacement or refund should a major failure occur and for compensation for any other reasonably foreseeable loss or damage. Our customers are also entitled to have the products repaired or replaced should the products fail to meet acceptable quality and the failure does not amount to a major failure. Should there be defects in materials, components and workmanship is identified within the specified warranty period, Oz Direct will decide to repair or replace the product.
Warranty is subject to inspection and determined that the defect was not caused by or contributed by external and other factors beyond our control. This includes mis-use, excessive use, improper installation, maintenance, repair, tampering or modifications to the product that is not stated and recommended by the manufacturer.
Warranty can be claimed by contacting Oz Direct and returning the product within the Warranty Period with the original Tax invoice. Postage and Freight to and from in relation to warranty claims is the responsibility of the customer.
Oz Direct makes no warranty or guarantee regarding the suitability or replaceability of its products for any purpose. Oz Direct does not assume any liability from the application or use of any products, including consequential or incidental costs, damage or injury. All installation, testing and operating parameters must be validated by the customers qualified technical experts.
1 Month Warranty on Rechargeable Batteries.
Lithium Polymer Charging/Discharging & Safety Information
Lithium Polymer Safety Tips: Lithium Polymer cells are a tremendous advance in battery technology for RC use. However, due to the chemistry of lithium cells, there is a possibility of fire if charging is not properly done. It is unavoidable due to the nature of lithium itself. This is no different from many things we use in daily life - knives, kitchen cleaners, automobiles, for a few examples - which are inherently dangerous, but which can be used safely by adhering to simple rules and precautions.
- Batteries should NEVER be left unattended while charging.
- Be absolutely sure that the Lithium Polymer charger settings are correct for the battery pack being charged - both voltage and current settings.
- Lithium Polymer must be CHARGED and STORED in a fire-safe container like a Li-po Safe Pouch / Bag.
- Do not charge batteries near flammable items or liquids.
- Keep a dry fire extinguisher nearby or a large bucket of dry sand, which is a cheap and effective extinguisher.
- Never charge inside an automobile even when parked.
- KEEP BATTERIES AWAY from children and pets at ALL times.
Connection: Be sure that the correct polarity is observed when connecting battery packs to charger or ESC.
RED = POSITIVE (+)
BLACK = NEGATIVE (-)
Charging/Discharging: Your new battery pack arrives between 30-60% SOC depending on how it is shipped. Charge your pack fully before first use. Charge your LiPo battery pack at 5C or less on the LiPo setting only. You must use a balance charging system. Otherwise, you risk your pack becoming severely out of balance over time, which will significantly decrease the lifespan.
Ex: If charging a 4000mah LiPo pack at 1C, you would be charging it at 4 Amps.
Ex: If balance charging a 4000mah LiPo pack at 5C, you would be charging it at 20 Amps.
Please refer to your owner's manual regarding the recommended ESC cut off voltage for your particular application prior to first use to avoid accidentally over-discharging your batteries.
Do NOT charge your LiPo packs on a NIMH/NICD charger. Your charger must be designed for LiPo cells. Do not charge above 4.2V per cell, over discharge under 3V per cell. Never leave LiPo packs unattended during charging or after a crash in your vehicle. Don't leave the battery pack plugged into a vehicle while not in use. The pack can still discharge to an unsafe level and damage the pack even if all components are turned off.
It is dangerous to draw more power than what the pack is rated for. This will void any warranty on the pack and can also cause your battery pack to ignite into flames. The temperature of the pack should never exceed 140F degrees. If it does, you may need a pack that is rated to handle more power.
Storage Procedure: When not using your LiPo/Li-Ion battery pack, store it at 60% of the pack's rated capacity. Make sure to cycle your packs at least once per month since leaving them on the shelf for a prolonged period of time can cause the packs to get severely out of balance, puff/swell or even go dead.
Balancing taps on LiPo/Li-Ion Packs: All LiPo/Li-Ion packs come standard with a JST-XH style balancing tap (white connector), which is compatible with most industry standard balance chargers. Always balance charge your pack before each use as this “matches” the voltage of each cell to give you the highest performance and longest life.
Handling Cautions:
- Never leave batteries inside a car on a hot day or any other place where temperature may exceed 140F / 60C.
- Although environmentally friendly, lithium polymer cells must be FULLY discharged before disposal. Use a resistor setup (light bulbs, for example) to accomplish this, to avoid the possibility of a short-induced fire after disposal.
- Immediately discharge damaged batteries at 1/2 C rate and dispose.
- Do not put the loose cells in a pocket, bag, or drawer where they could short-circuit against other items, or the battery tabs could be pressed against each other.
- Do not place the loose cells on any conductive surface, such as a metal-topped table.
- We recommend purchasing pre-assembled packs rather than assembling packs from loose cells.
- Take care that the cells are not punctured, especially by metallic objects like hobby knives.
- If the electrolyte in the cells should get on your skin, thoroughly wash with soap and water. If in the eyes, rinse thoroughly with cool water. Immediately seek medical attention for this, or for burns.
- Although our batteries are now water sealed, we do not recommend submerging our batteries for extended periods of time. The battery packs will be protected during normal rc conditions.
All Lithium Polymer Batteries we carry are only approved for rc use, and may not be used in any other application. Battery discharging, charging, electric motors, spinning propellers, and flying models all have the potential for serious injury to persons and damage to property. In purchasing these products, the user agrees to accept responsibility for all such risks, and not to hold the battery manufacturer, distributors, or retailers - (all including owners and employees) -responsible for any accident, injury to persons, or damage to property.
The use of Lithium Polymer batteries in radio-controlled models is to be considered experimental, and there is no warranty, expressed or implied, by the manufacturer, distributors, or retailers with respect to the replacement of vehicles, chargers, or damage to property or person, nor any other use nor aspect unless otherwise stated.
LiPo Battery Warming Devices / ”Bumping” LiPo Packs:
Do not, under any circumstances, attempt to “heat up” your batteries or increase the voltage of a pack above 4.2V per cell using these devices or techniques. Some insidious lithium polymer retailers/distributors have suggested using these devices and techniques to increase the performance of your lithium polymer packs. THIS IS NOT SAFE AND IS LITERALLY PLAYING WITH FIRE!
Devices on the market that heat up lithium polymer batteries can increase the risk of a fire. Lithium polymer cell manufacturers suggest that exceeding 140 degrees is NOT a safe temperature for a lithium polymer cell. At 140 degrees, the pack can become unstable and very dangerous. The small increase in performance is not worth the risk of a fire. PLEASE STAY SMART AND SAFE BY NOT USING THESE PRODUCTS!
Some retailers/distributors of other brands of lithium polymer batteries have suggested that their customers and racers “bump” the voltage of their packs using settings other than the lithium polymer setting on their charger. The manufacturers of lithium polymer cells suggest a voltage range of 3V-4.2V. Increasing voltage above 4.2V per cell is not safe. You should never attempt to charge your packs beyond the voltage set for lithium polymer packs on your lithium polymer charger. Using other battery settings to “bump” the voltage beyond 4.2V per cell can cause fire and injury. The small increase in performance is not worth the risk of fire. PLEASE DO NOT USE THESE METHODS!
18650 Lithium-Ion Warning and Safety Tips:
WARNING - The user must have an appropriate understanding of the potential dangers of LITHIUM-ION BATTERIES before purchase and usage. No express or implied guarantee of compatibility, suitability, or fitness for any particular purpose or device can be made. This battery is manufactured and sold for the intended use of system integrations with proper protection circuitry or battery packs with a BMS (battery management system) or PCB (circuit board/module). This battery is neither designed nor intended to be used with an unprotected E-CIGARETTE, VAPORIZER, or similar device.
USAGE OF THIS BATTERY IS AT YOUR OWN RISK!
DO NOT USE WITH UNPROTECTED E-CIGARETTE, VAPORIZER, OR SIMILAR DEVICE
DO NOT STORE LOOSE OR IN A POCKET, PURSE, ETC. ALWAYS USE A PROTECTIVE CASE OR BOX FOR STORAGE AND TRANSPORT
BATTERIES MAY EXPLODE, BURN, OR CAUSE A FIRE IF MISUSED OR MISHANDLED
ONLY use with proper protection circuitry
DO NOT short circuit intentionally or unintentionally
KEEP AWAY from metal/conductive objects to prevent short circuiting
DO NOT use if battery, wrapper or terminal insulator is damaged or torn
DO NOT over-charge or charge above the maximum voltage rating
DO NOT over-discharge or exceed the continuous discharge rating
DO NOT modify, disassemble, puncture, cut, crush, or incinerate
DO NOT expose to liquids or high temperatures
KEEP AWAY from pets and children
ALWAYS charge in or on a fire-proof surface and never leave batteries charging unattended
ONLY use a smart charger designed for this specific type of battery
DO NOT mix and match brands and models, old and new, used and unused batteries
STOP immediately if while charging/storing/using the battery it emits an unusual smell, feels hot, changes color or shape, or appears abnormal in any way
It is your responsibility to determine that your charger or device is functioning properly
If exposed to battery electrolyte, flush with water immediately and/or immediately contact a physician or emergency services
DO NOT throw away in trash; contact your local jurisdiction for proper recycling or disposal
