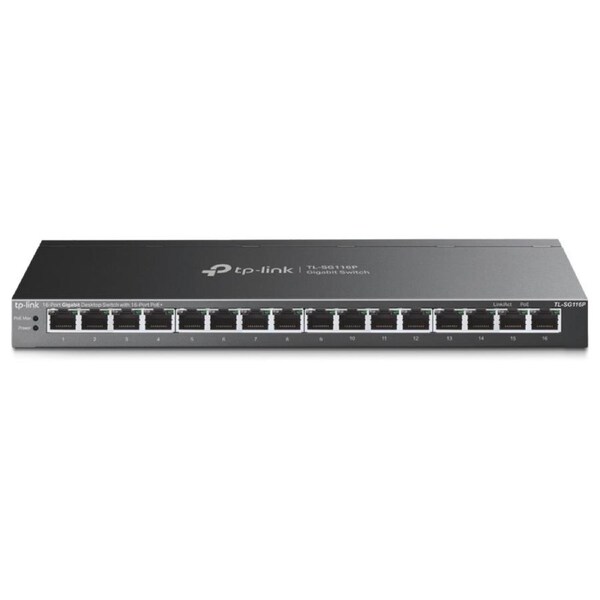

TP-Link TL-SG116P 16-Port Gigabit Desktop Switch with 16-Port PoE+

TP-Link TL-SG116P, 16-Port Gigabit Desktop Switch with 16-Port PoE+

• 16x 10/100/1000 Mbps RJ45 ports
• With 16PoE+ ports, transfers data and power on one single cable
• Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
• Supports PoE Power up to 120W for all PoE ports*
• Up to 250 m data and power transmission range under Extend Mode**
• Priority Mode ensures high priority of ports 1-4 to guarantee the quality of the sensitive applications
• Isolation Mode allows one-click client traffic separation for higher security and performance
• Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
• Plug and play with no configuration required
• Learn more about TP-LinkPoE technology >

HARDWARE FEATURES

• Interface :• 16x 10/100/1000Mbps RJ45 Ports
  • AUTO Negotiation
  • AUTO MDI/MDIX
• Network Media :• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100? STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100? STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100? STP (maximum 100m)
• Fan Quantity :Fanless
• External Power Supply :External Power Adapter (Output: 53.5 VDC / 2.43 A)
• Packet Forwarding Rate :23.8 Mpps
• PoE Ports (RJ45) :• Standard: 802.3 af/at compliant
  • PoE Ports: Ports 1-16
  • Power Supply: 120 W
• Mac Address Table :8K, Auto-learning, Auto-aging
• Switching Capacity :32 Gbps
• Dimensions ( W x D x H ) :11.3 x 4.4 x 1.0 in (286 x 111.7 x 25.4 mm)
• Max Power Consumption :• 11.72 W (220 V / 50 Hz no PD connected) /
  11.56 W (110 V / 60 Hz no PD connected)
  • 142.51 W (220 V / 50 Hz with 120 W* PD connected) /
  144.28 W (110 V / 60 Hz with 120 W* PD connected)
• Max Heat Dissipation :• 39.85 BTU/h (220 V / 50 Hz no PD connected) /
  39.31 BTU/h (110 V / 60 Hz no PD connected)
  • 484.53 BTU/h (220 V / 50 Hz with 120 W* PD connected) /
  490.55 BTU/h (110 V / 60 Hz with 120 W* PD connected)

SOFTWARE FEATURES

• Advanced Features :• Compatible With IEEE 802.3af/at Compliant PDs
  • Extend Mode Button (Ports 1-4, Up to 250 m PoE power supply and data transmission)
  • Priority Mode Button (Ports 1-4)
  • Isolation Mode Button (Ports 1-7 / 8-14)
  • PoE Auto Recovery (Ports 1-16)
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE 802.3x Flow Control
  • 802.1p/DSCP QoS
  • IGMP Snooping
• Transfer Method :Store-And-Forward

OTHERS

• Certification :FCC, CE, RoHS
• Package Contents :• TL-SG116P
  • Power Adapter
  • Installation Guide
• Environment :• Operating Temperature: 0-40 ? (32-104 ?);
  • Storage Temperature: -40-70 ? (-40-158 ?)
  • Operating Humidity: 10-90% RH non-condensing
  • Storage Humidity: 5-90% RH non-condensing
