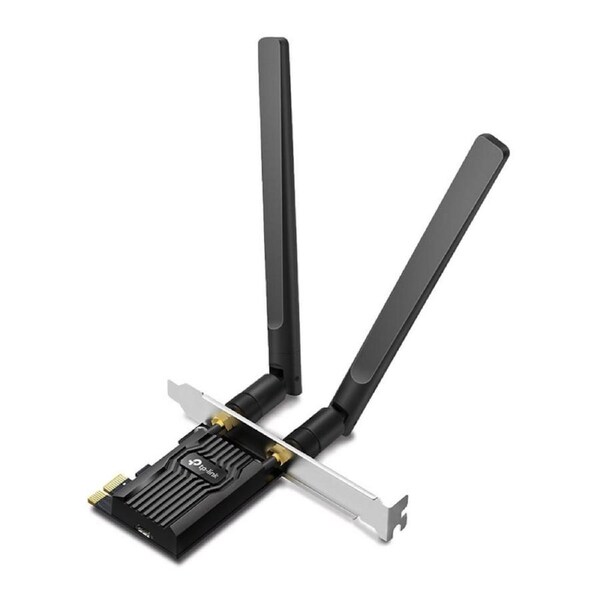

TP-Link Archer TX20E AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

TP-Link Archer TX20E, AX1800 Wi-Fi 6 Bluetooth

• Unrivalled Wi-Fi 6 Speed-Breaks the gigabit barrier with speed up to 1201Mbps (5 GHz) + 574 Mbps (2.4 GHz)
• Wider Signal Coverage- Connect to your Wi-Fi in more parts of your home with two external high-gain antennas ensuring greater coverage and enhanced stability
• Bluetooth 5.2-The latest Bluetooth technology achieves 2x Faster Speed and 4x Broader Coverage than BT 4.2
• Improved Security-The latest security enhancements WPA3 provides enhanced protection in personal password safety
• Backward Compatibility - Fullsupport for 802.11ax/ac/a/b/g/n standards

HARDWARE FEATURES

• Dimensions :4.76 x 3.09 x 0.82 in
  (120.8 x 78.5 x 20.9 mm)
• Antenna Type :Two High-Gain Dual Band Antennas
• Chipset :Realtek Wi-Fi 6 Chipset

WIRELESS FEATURES

• Wireless Standards :IEEE 802.11ax/ac/n/a 5 GHz
  IEEE 802.11ax/n/g/b 2.4 GHz
  Bluetooth 5.2
• WLAN Signal Rate :5 GHz
  11ax: Up to 1201 Mbps(dynamic)
  11ac: Up to 867 Mbps(dynamic)
  11n: Up to 300 Mbps(dynamic)
  11a: Up to 54 Mbps(dynamic)
  2.4 GHz
  11ax: Up to 574 Mbps(dynamic)
  11n: Up to 300 Mbps(dynamic)
  11g: Up to 54 Mbps(dynamic)
  11b: Up to 11 Mbps(dynamic)
• WLAN Reception Sensitivity :5 GHz :
  11ax HE80: -57.0dBm
  11ax HE40: -60.0dBm
  11ax HE20: -63.0dBm
  11ac VHT80: -59.5dBm
  11ac VHT40: -62.5dBm
  11ac VHT20: -67.5dBm
  11n HT40: -69.5dBm
  11n HT20: -72.5dBm
  11a 54Mbps: -74.0dBm
  11a 6Mbps: -94.5dBm
  2.4GHz :
  11ax HE40: -60.0dBm
  11ax HE20: -63.0dBm
  11n HT40: -69.5dBm
  11n HT20: -72.5dBm
  11g 54Mbps: -74.0dBm
  11b 11Mbps: -88.0dBm
• WLAN Transmit Power :5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP)
  2.4 GHz : 25dBm(FCC) / 20dBm(CE) (EIRP)
• WLAN Modes :Infrastructure mode
• Wireless Security :Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x
• Modulation Technology :DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM

OTHERS

• Certification :CE, FCC, RoHS
• Package Contents :Archer TX20E
  Two High-Gain Dual Band Antennas
  Low-Profile Bracket
  Bluetooth Header Cable
  Quick Installation Guide
  Resource CD
• System Requirements :Windows 11/10(64-bit) only
• Environment :Operating Temperature: 0?~40? (32?~104?)
  Storage Temperature: -40?~70? (-40?~158?)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
