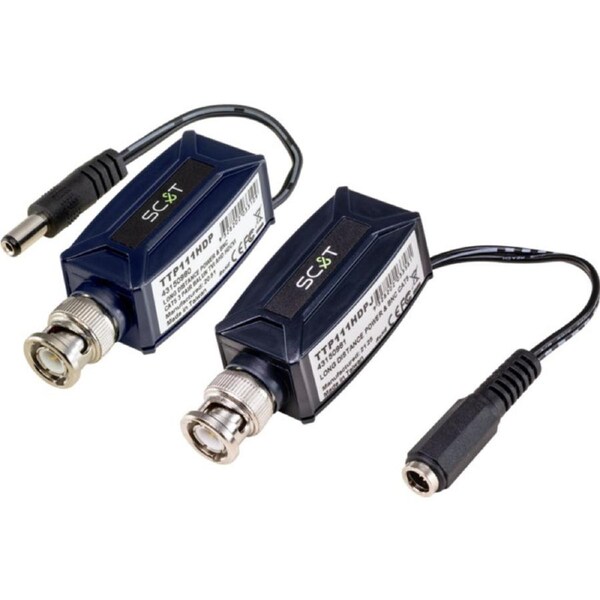

TTP111HDPK VIDEO POWER CAT5 TRANSCEIVER
- Transmit HD-TVI/AHD/HDCVI/CVBS video and power(3 pairs)over one CAT5ecable.
- Include 2 units: 1 x RJ45 to BNC with DC power plug, 1 x RJ45 to BNC with DC power jack.
- Eliminate coaxial & power cable.
- Fast, easy installation, saving time and money.
- Substantial saving on the cost of the cable itself.
- Built-in ESD, EFT(impulse noise), and transient protection
- Transmission distance: 1080P: HD-TVI 250M, AHD 250M, HDCVI300M
4M/5MP/4K: HD-TVI200M, AHD 200M, HDCVI200M CVBS: 400M
ITEMNO. | TTP111HDP | TTP111HDPJ |
Video Input / Output Terminals | BNC x 1 (1 Vp-p,75 Ohm) | |
Video Onput / Iutput Terminals | RJ45 x 1 ( 100 Ohm ) | |
Power | DC-PLUG | DC-JACK |
Bandwidth | 50Hz ~ 60MHz ( -3dB ) | |
Transmission Distance | 1080P: HD-TVI 250M, AHD 250M, HDCVI300M | |
ESD protection | 30 KV(Air),15 KV (Contact) ; IEC 61000-4-2 compliant | |
EFT protection | 40A(5/50ns) ; IEC 61000-4-4 compliant | |
Lightning protection | 2A (8/20µs) ; IEC 61000-4-5 compliant | |
Surge Protection Attack Time | < 1 nS | |
Environmental Specifications | Operation: 0 to 55°C, Storage: -20 to 85°C, Humidity: up to 95% | |
Dimension mm | 69 x 25 x 20.7 140mm power cord | |
Weight g | 37 g |
