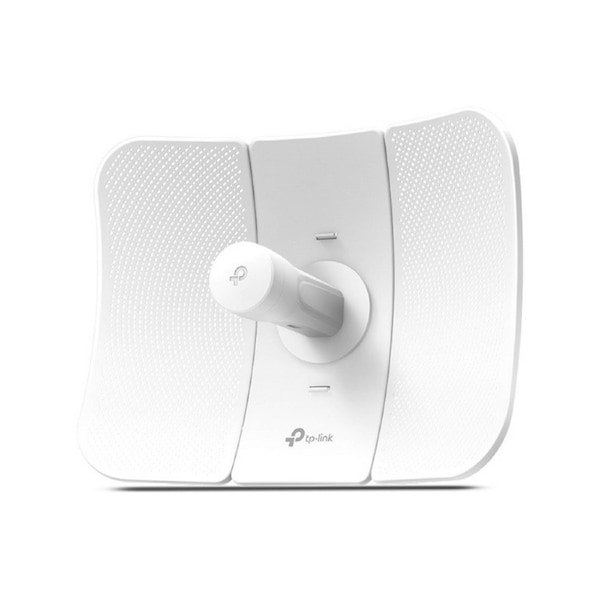

TP-Link CPE610 5GHz 300Mbps 23dBi Outdoor CPE MIMO Antenna AP Client Bridge
Up to 300Mbps on 5GHz wireless data rates
23dBi high-gain directional 2x2 MIMO antenna and a dedicated metal reflector, ideal for long-distance application
Excellent beam directivity, improved latency and noise cancellation
Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE610 stable even in strong winds
Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability
TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance
Pharos Control gives administrators a free, centralized management system
AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
Passive PoE supports to allow flexible deployment and convenient installation
HARDWARE FEATURES
Processor Qualcomm 560MHz CPU, MIPS 74Kc
Memory 64MB DDR2 RAM,8MB Flash
Interface 1 1 10/100Mbps Shielded Ethernet Port (LAN/POE)
1 Reset Button
Power Supply Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Dimensions 360 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.) (No mount)
Antenna Gain 23dBi
Antenna Beamwidth 9o(Azimuth), 7o(Elevation)
Protection 15KV ESD Protection
6KV Lightning Protection
Enclosure Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n
Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
Frequency 5.15~5.85GHz
Transmit Power Max. 29dBm/790mW (Adjustable power by 1dBm)
SOFTWARE FEATURES
Operating Modes AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP Client)
Ship out the order within 24-48 hours.
Estimated Delivery Time Frame: 2 - 15 business daysChange of mind:
Customer can return the item if purchased by mistake within 14 days of the customer’s order being received.
Change of mind returns will only be eligible for a refund on the product’s sale price within receiving the item'. Return postage is paid by the customer.
Warranty
Without prejudice and to the extent allowed by the Trade Practices Act 1974, The Australian Consumer Law and Competition and Consumer Act 2010, all hardware sold by MAD Electronics Australia is covered by one year limited warranty and is also backed by Australian manufacturer warranty. Where the manufacturer warranty period exceeds one year, we will advise the customer to contact the manufacturer directly for warranty support after the first year of purchase. Due to the nature of consumables products and software, they are not returnable or refundable items.
Any defective products purchased from MAD Electronics Australia and affiliates that fall within the warranty period provided will be covered, unless they fall within the following conditions:
· Physical Damage on the product not caused in the event during transit or Dead on Arrival (DOA) but caused due to mishandling, incorrect use of product for its purposes, improper installation of product, by accident, insect or vermin infestation, improper method or failure to maintain service and handle the item with reasonable care.
· The product has been modified using unauthorised methods. Any modifications on the product including physical and software modifications using third party unauthorised software such as third party firmware updates will void the warranty of products.
· The warranty seal or serial number of the item has been tampered with.
· The item has been serviced by another party other than madelectronics
· Consequential loss including but not limited to data, programs, software or other information stored on storage products, computer or laptop systems.
· Software
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
