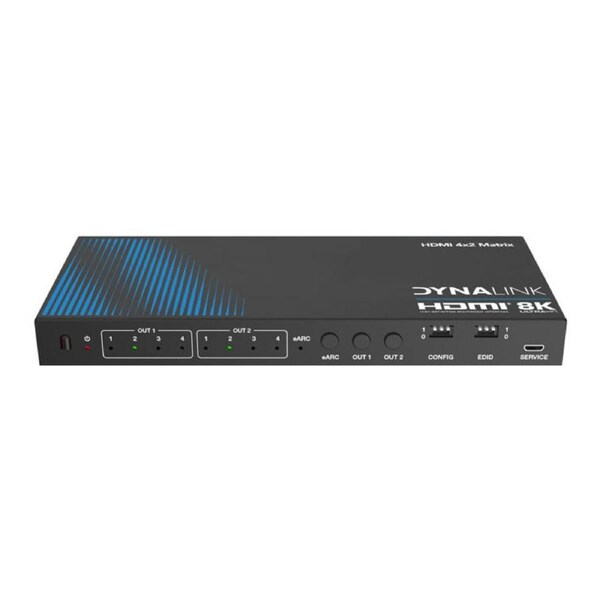

8K 4x2 HDMI Matrix Switcher With EARC

Allows four HDMI 8K V2.1 sources to be switched to two outputs/screens. This compact switcher brings together your HDMI sources for easy switching via front panel or IR remote control. eARC HDMI output allows simple connection to HDMI equipped soundbars. S/PDIF and 3.5mm stereo jack outputs are provided for connection to amplifier/speakers. Front panel provides access to switching configuration (pass through/scaler/splitter/switcher) and EDID DIP switches. Power supply included.

Box Contents
1 x 8K HDMI 4x2 Matrix
1 x 5V/2A Power Supply
1 x IR Remote
1 x User Manual

Features

• HDMI 2.1 and HDCP 2.3 compliant
• 40Gbps video bandwidth
• Supports video resolution up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
• VRR, FVA, ALLM supported
• Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass through
• Support HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
• INPUTS 1 port and OUT 1 port support eARC/ARC function
• Allows HD audio up to Dolby Atmos, DTS:X over TrueHD from ANY external HDMI source to any eARC/ARC sound system
• Support audio de-embedding function (output through the optical and analog port)
• Built-in EDID DIP switch supports advanced EDID management
• 8K->4K, 8K/4K->2K downscaler support
• Support IR remote control and front panel button switching
• Built-in Equalizer, Retiming and Driver
• Compact design for easy and flexible installation
